Lub Rooj Sib Tham Chav Microphone Solutions
3x optical zoom usb ptz lub koob yees duab thiab 5m khaws ntau lub microphone;
Lub koob yees duab hauv chav sablaj thiab microphone rau pab pawg;
Nrog 117 degree super dav ntau yam;
Preset txoj hauj lwm: 10 los ntawm cov chaw taws teeb tswj thiab 64 los ntawm joystick maub los;
5m khaws ntau yam Bluetooth hais lus;
Hauj lwm lawm
Khoom Taw Qhia:

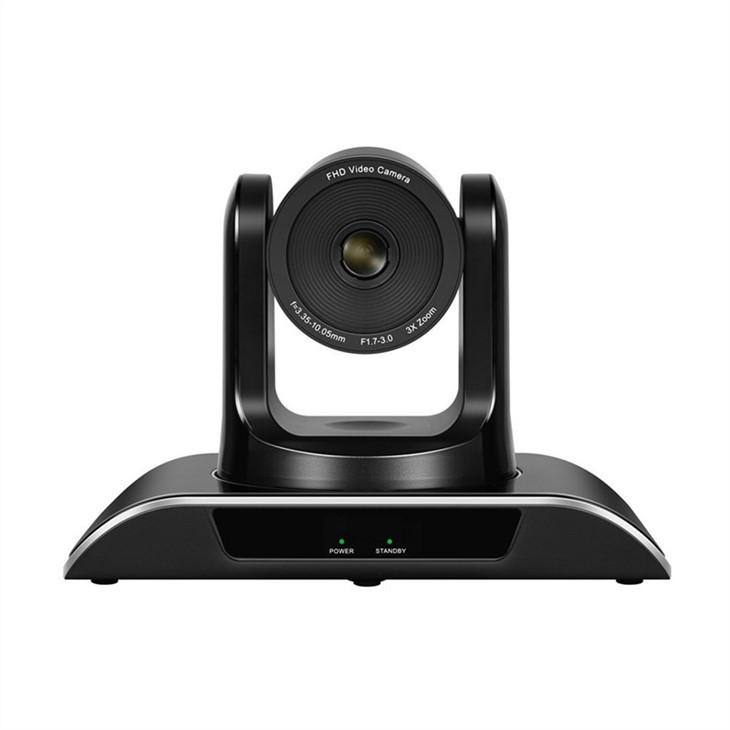

Lub VC200 USB lub koob yees duab thiab AM210G Bluetooth microphone lub rooj sib tham chav lub koob yees duab thiab microphone rau pawg uas suav nrog 1 daim ntawm 3x zoom Full HD USB ptz lub koob yees duab, thiab 5m khaws ntau yam Bluetooth microphone.
Lub koob yees duab tau txais 1/2.9 nti HD Xim CMOS thiab kev daws teeb meem yog 2.1 megapixels (16: 9), Full HD 1080P tso zis daws teeb meem & cov duab zoo siab tuaj yeem mus txog 30 fps. Lub microphone nyob rau hauv tag nrho cov vis dis aus thiab suab daws teeb meem, TV-M3-B yog lub rooj sib tham Bluetooth hais lus nrog 360 degree omnidirectional lub suab tuaj tos, lub vojvoog tuaj yeem ncav cuag 5 meters. USB ntsaws thiab ua si ntawm lub koob yees duab thiab microphone, uas ua kom txhua tus tuaj yeem pib lub rooj sib tham yooj yim. Kev daws tag nrho yog qhov zoo dua rau chav sib tham me me.
Khoom Parameter
Lub koob yees duab qauv | VC 200 |
Sensor | 1/2.9 "HD xim CMOS |
Muaj txiaj ntsig pixel | 2.1 mega pixel daws teeb meem |
Video system | 1080p/30/25, 720p/30/25 |
Zoom | 3 x optical zoom |
Lens | f=335-10.05mm |
Aperture | F1.6-F3.0 |
Kab rov tav kaum | 99.6 degree (W) -30.6 degree (T) |
Lub kaum sab xis | 53 0 degree (W) -17.2 degree (T) |
Diagonal lub kaum sab xis | 129.2 degree (W) -37.6 degree (T) |
FOV | 117 degree |
Video tso zis | USB 2 0 |
Video daws teeb meem | 1080P (1920 * 1080) thiab lwm yam |
Teeb liab txheem | NTSC/PAL |
Preset txoj hauj lwm | 64 |
Tswj lub davhlau ya nyob twg | RS -232, RS485 |
Shutter | 1/30s -1/10000s, auto |
Baud tus nqi | 38400/9600bps |
Tswj raws tu qauv | VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
USB raws tu qauv | UVC 1.1 |
Yam tsawg kawg Illumination | 0.1Lux |
SNR | Ntau dua lossis sib npaug li 50dB |
Video encoding hom ntawv | MJPEG, YUV |
Kab rov tav tig | 35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s |
Vertical rotation | 9 0 degree (± 45 degree) 0.1 degree / s -80 degree s |
Fais fab mov | DC 12V / 2A |
Kev siv fais fab | 12W |
Ua haujlwm kub | 0 degree ~ +50 degree |
Ua haujlwm av noo | 0 ~ 95% RH |
Khoom loj | 247 * 165 * 170 hli |
Microphone qauv | AM 210 G |
Bluetooth | BT5. 0 |
Roj teeb | 2400mAH (Ua-hauv lithium roj teeb) Lub sij hawm suab paj nruag (txog 8 teev) Roj teeb lub neej (hu) txog 6 teev. Charge lub sij hawm mus txog 3 teev |
Hom kev sib txuas | USB/Bluetooth/AUX |
Chav rooj sib tham loj | 15-30㎡ |
Ntsib nrog | 3-12 cov neeg tuaj koom |
Pickup range | 5 meters (16.4 ko taw) |
Mics | 2 x Professional Mics Array |
Hom microphone | Omni-directional (360-degree pickup range) |
Microphone rhiab heev | -29dBFS |
Txo suab nrov | Yog lawm |
Full duplex audio | Yog lawm |
AEC | Yog lawm |
Ntau zaus | 100Hz txog 22kHz |
Hais lus | 5W / 95dB |
Interface | 1 x Type-C, 1 x 3.5mm audio port |
Cov kev xav tau ntawm qhov system | Windows 7/8/10 lossis siab dua, MacOS 10.7 lossis siab dua, Chrome OS V29.01547 lossis siab dua |
Khoom feature thiab daim ntawv thov
Lub koob yees duab hauv chav sib tham thiab microphones tuaj yeem siv rau cov npoj yaig cov lus qhuab qhia, telemedicine, nyob streaming, video conference, kev kawm online thiab video hauv tsev.
VC200 USB lub koob yees duab thiab AM210G Bluetooth microphone yog sib xws nrog nrov tshaj plaws video thiab suab software xws li Skype, MS Teams, Google Meet, Cisco Webex, Zoom, BlueJeans, GoToMeeting, thiab lwm yam.
Cov lus qhia ntau lawm

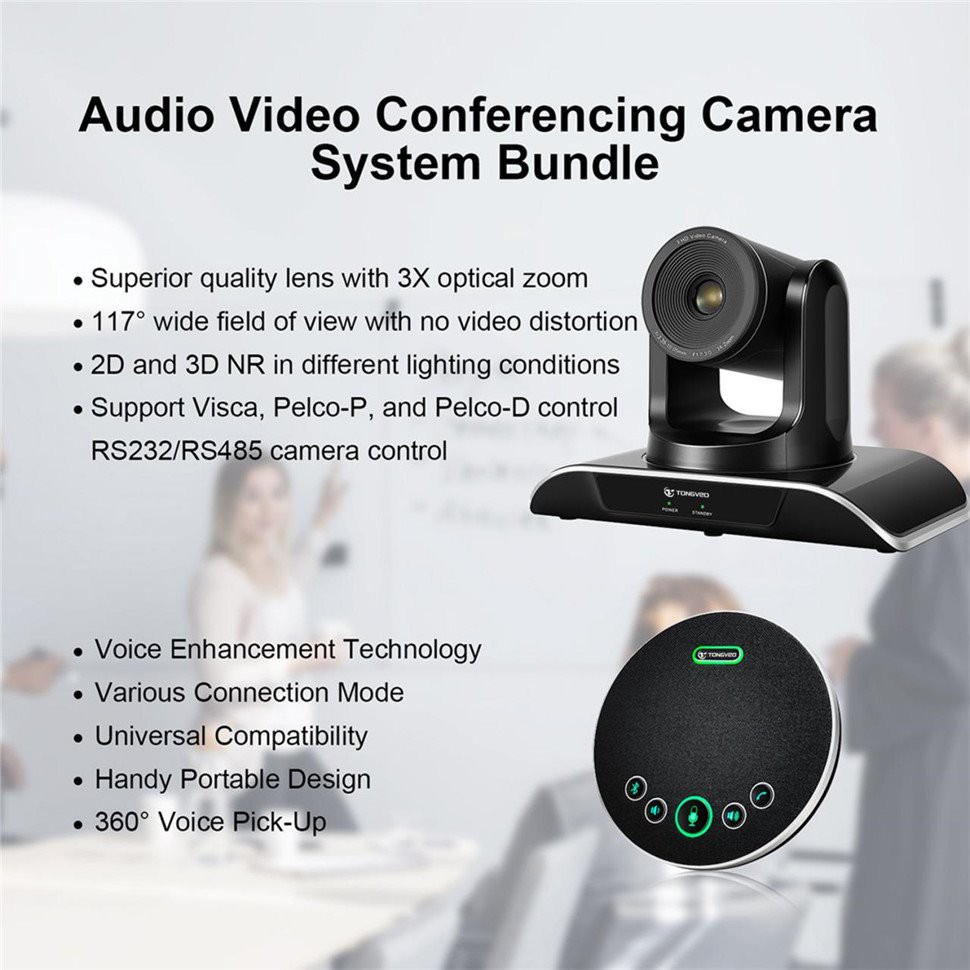

Lub koob yees duab hauv video conferencing lub koob yees duab thiab microphone system suav nrog 3x optical zoom lub koob yees duab;
Lub koob yees duab txais 3x lossless optical zoom lens, nrog lub kaum sab xis FOV ntawm 117 degrees; uas ua kom txhua tus tuaj yeem pom hauv chav;
Yias: ± 175 degree (Max ceev 80 degree / S);
qaij:-35 degree --+55 degree (Max ceev 60 degree /s);
Txhawb infrared tswj, RS232 tswj, Web interface tswj, txhawb VISCA, PELCO-D, PELCO-P raws tu qauv, thiab tsis siv neeg Identifiable raws tu qauv;
Preset txoj hauj lwm: tuaj yeem teeb 10 los ntawm IR chaw taws teeb tswj thiab 64 los ntawm cov keyboard tswj ntawm RS232 / RS485.
Lub koob yees duab hauv tag nrho cov kev daws teeb meem yog sib xws nrog lub qab nthab, phab ntsa mount thiab tripod thiab lwm yam, nws tuaj yeem yooj yim ntes koj cov duab xav tau;
Raws li qhov yooj yim li ntsaws thiab ua si, lub koob yees duab thiab microphone, xyuas kom txhua tus tuaj yeem pib lub rooj sib tham yooj yim.
Khoom tsim nyog
Tag nrho peb lub koob yees duab thiab microphone tau txais daim ntawv pov thawj CE, FCC, RoHS, thiab lwm yam
Xa, nkoj thiab pab
Kev xa khoom:
Rau cov qauv txiav txim, tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;
Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.
Dab tsi hauv lub thawv?

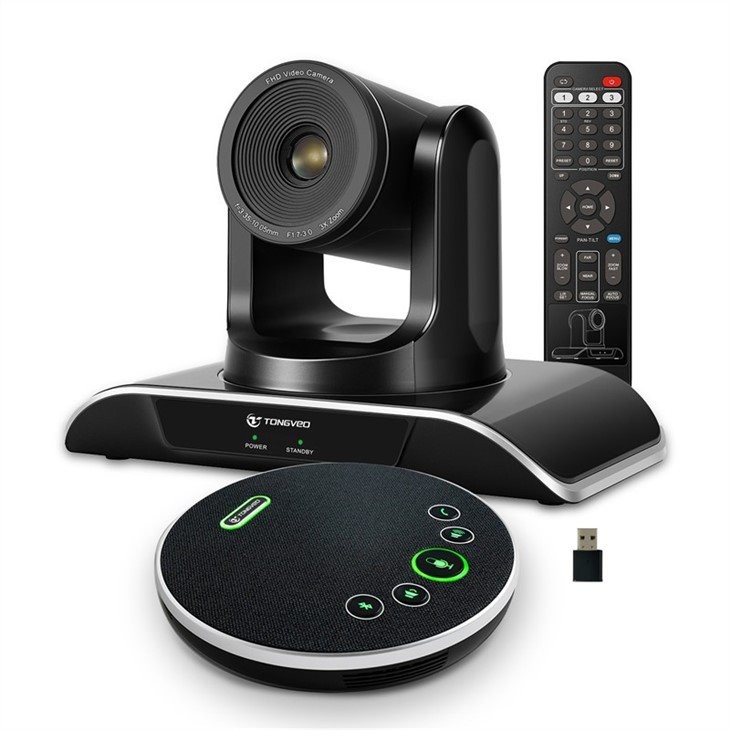

Lub TV-C3U USB lub koob yees duab thiab AM210G Bluetooth microphone suav nrog 1 daim ntawm 3x zoom ptz lub koob yees duab, 1 daim M3B Bluetooth microphone, thiab lwm yam khoom siv.
FAQ
Q: Koj puas tuaj yeem ua OEM thiab ODM?
A: Yog, OEM thiab ODM yog ob qho tib si txais. Qhov yooj yim kom muaj nuj nqis peb yuav qhia tom qab peb tham txog nws.
Q: Peb puas tuaj yeem siv peb lub logo?
A: Yog lawm, peb tuaj yeem luam koj tus kheej lub logo raws li koj qhov kev thov.
Q: Koj muaj peev xwm ntim ntau npaum li cas?
A: Peb muaj ib pob khoom txheem.
Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv 8 teev tom qab peb tau txais koj qhov kev nug.
Q: Koj tus MOQ yog dab tsi?
A: Yog tias peb muaj cov khoom hauv Tshuag, nws yuav tsis muaj MOQ. Yog tias peb xav tau tsim, peb tuaj yeem tham txog MOQ raws li tus neeg siv khoom qhov xwm txheej.
