Wireless Video Conference System



Lub TV-UV200 ptz lub koob yees duab thiab M3-B Bluetooth hais lus wireless lub rooj sib tham chav daws teeb meem, uas suav nrog 3x optical zoom ptz lub koob yees duab, thiab Bluetooth speakerphone.

Lub koob yees duab nruab nrog 1/2.8 "SONY CMOS sensor nrog 2.38 megapixels, tuaj yeem xa cov ntsiab lus siab 1080p@60fps cov yeeb yaj kiab nrog rau qhov dav ntawm qhov pom. Txaus siab rau qhov ceev ceev PTZ txav thiab ua tau zoo ntawm USB3. 0 kev sib txuas nrog NV-U series koob yees duab.

TV-M3-B yog lub rooj sib tham Bluetooth hais lus nrog 360 degree omnidirectional lub suab tuaj tos thiab tuaj yeem nqa 5 meters vojvoog, USB ntsaws thiab ua si. Tag nrho hauv ib qho kev sib tham video zoo dua rau chav sib tham me me thiab huddle.







Qauv	TV-VC 200
Sensor	1/2.9 "HD xim CMOS
Muaj txiaj ntsig pixel	2.1 mega pixel daws teeb meem
Video system	1080p @ 30/25fps, 720p @ 30/25fps
Zoom	3 x zoom
Lens	f=335-10.05mm
Aperture	F1.7-F3.0
FOV	129.2 degree (W) -37.6 degree (T)
Video tso zis	USB 3 0
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	Tus neeg siv tuaj yeem teeb tsa txog 64 presets (10 presets los ntawm IR chaw taws teeb)
Tswj lub davhlau ya nyob twg	RS-232 (tsuas yog input), RS-485, USB
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P (RS-232, RS-485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG/YUY2/H.264
Kab rov tav tig	35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s
Vertical rotation	18 0 degree (± 90 degree) 0.1 degree / s -80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247.1 * 152 * 169.6 hli
Khoom hnyav	1.37kg / 2.45kg (net / tag nrho qhov hnyav)
Microphone qauv	TV-M3-B
Bluetooth	BT5. 0
Roj teeb	2400mAH (Ua-hauv lithium roj teeb) Lub sij hawm suab paj nruag (txog 8 teev) Roj teeb lub neej (hu) txog 6 teev. Charge lub sij hawm mus txog 3 teev
Hom kev sib txuas	USB/Bluetooth/AUX
Chav rooj sib tham loj	15-30㎡
Ntsib nrog	3-12 cov neeg tuaj koom
Pickup range	5 meters (16.4 ko taw)
Mics	2 x Professional Mics Array
Hom microphone	Omni-directional (360 degree tuaj tos ntau)
Microphone rhiab heev	-29dBFS
Txo suab nrov	Yog lawm
Full duplex audio	Yog lawm
AEC	Yog lawm
Ntau zaus	100Hz txog 22kHz
Hais lus	5W / 95dB
Interface	1 x Type-C, 1 x 3.5mm audio port
Cov kev xav tau ntawm qhov system	Windows 7/8/10 lossis siab dua, MacOS 10.7 lossis siab dua, Chrome OS V29.01547 lossis siab dua





VC200 USB ptz conferencing lub koob yees duab tuaj yeem siv rau kev siv tshuaj kho mob, kev sib tham video, kev kawm online, nyob streaming thiab video hauv tsev.





3X 5.8G WIRELESS 1080P 60FPS USB3.0 PTZ koob yees duab Bundle nrog Speakerphone

Muab kev daws teeb meem yooj yim dua Video thiab suab. TONGVEO wireless nyob streaming lub koob yees duab los nrog 5.8GHz USB receiver, rau 50ft kis tau tus mob ntau yam uas tso cai rau kev hloov pauv hauv qhov chaw. Yog li koj tuaj yeem cia siab tias qhov tseeb, tsis muaj kev cuam tshuam hauv online ua haujlwm. Lub xov tooj hais lus muab 360 degree lub suab txhim kho thaum muaj txiaj ntsig zoo tshem tawm cov suab nrov tom qab, ua kom muaj kev tshaj lij thiab cuam tshuam kev lag luam kev sib tham.





Yooj yim rau kev teeb tsa thiab ntau txoj hauv kev ntawm kev tswj hwm.

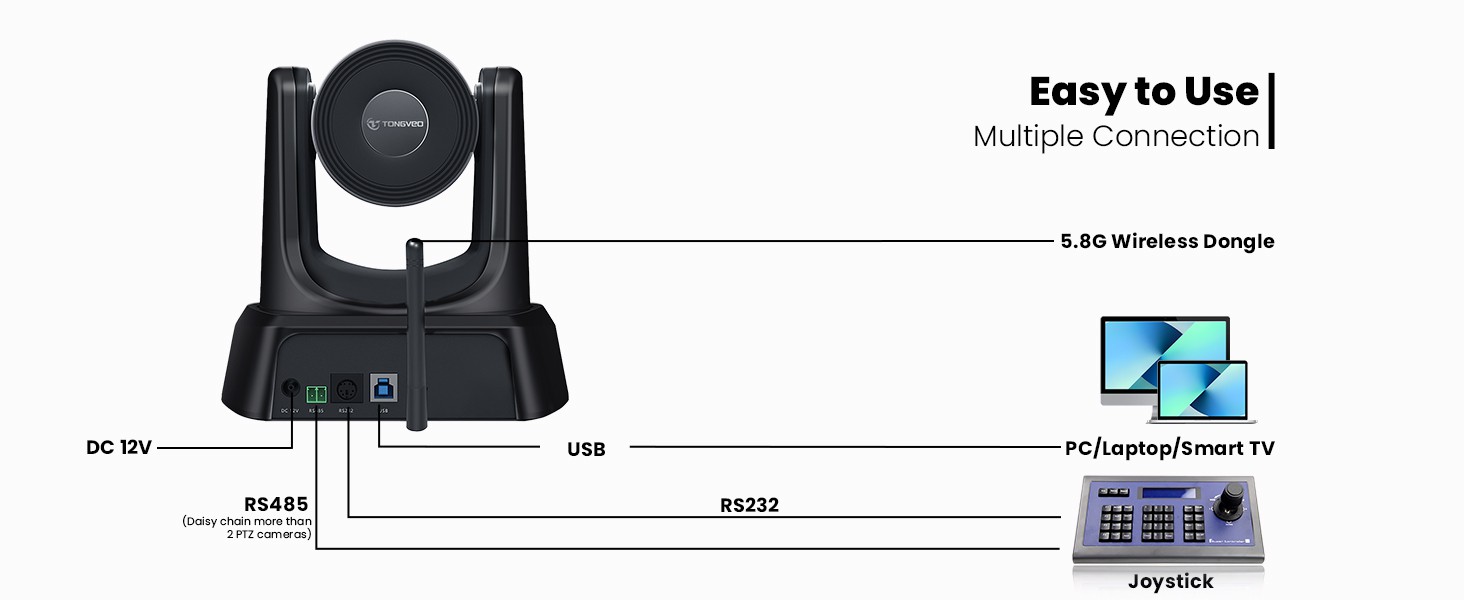

Kev teeb tsa tau nrawm nrog lub plug thiab ua si yooj yim, tsis muaj sijhawm nkim, txiav txim siab los ntawm lub computer yam tsis tas yuav tsum tau nruab cov tsav tsheb. Leej twg tuaj yeem teeb tsa lub koob yees duab Wireless no tau yooj yim thiab tswj hwm kev sib tham video, pib lub rooj sib tham video nrog kev sib txuas wireless. Nws tuaj yeem tswj tau los ntawm peb cov chaw taws teeb, tus qauv PTZ lub koob yees duab joystick (RS485, lossis RS232 interface), thiab cov rooj sib tham tseem ceeb (UVC1.1).

3X WIRELESS CAMERA nrog DUPLEX DESIGN SPEAKERPHONE.

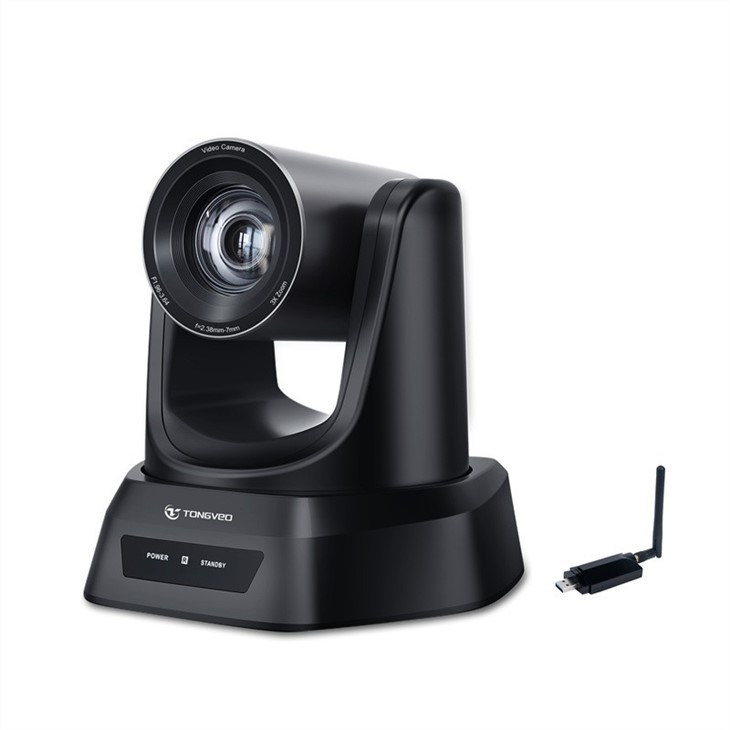

Lub koob yees duab 5.8GHz wireless PTZ ua kom muaj kev ruaj ntseg thiab tsis muaj kev cuam tshuam. Nws tuaj yeem txav tau sai ntawm ib qho preset mus rau lwm qhov kom ntes tag nrho qhov chaw sib tham. Kev daws teeb meem zoo tshaj plaws rau cov rooj sib tham ua lag luam me lossis nruab nrab. Nws kuj yog ib qho kev xaiv zoo rau kev tshaj tawm koj cov kev pabcuam hauv pawg ntseeg los tuav cov rooj sib tham hauv online thiab hais lus.





FULL HD VIDEO CONFERENCING WIRELESS EQUIPMENT SYSTEM.

Ua koj lub rooj sib tham Hybrid nrog TONGVEO 3X wireless PTZ lub rooj sib tham lub koob yees duab system. Yias Tilt Lub Koob Yees Duab nrog 114 degree wide field of view uas tsis muaj video distortion.Muaj kev daws teeb meem zoo dua thiab lub suab. Txhim kho koj txoj kev sib koom tes nrog lub suab zoo dua thiab cov duab zoo rau kev txhim kho kev tsim khoom. Tua tawm cov rooj sib tham video thiab suab tau yooj yim ntawm kev hu xov tooj, kev sib tham hauv video, chav kawm online, Telemedicine, kev cob qhia nyob deb, kev sib tham nyob deb, thiab lwm yam.





CEEB TOOM nrog PC, MAC, LAPTOP, thiab APPS POPULAR CONFERENCE

TONGVEO 3X wireless PTZ koob yees duab system yog sib xws nrog Windows XP, Vista, thiab 7/8 / 8.1 / 10, Mac 10.4 los yog siab dua, nws yog haum rau laptops, LCDs, los yog saib. Peb lub rooj sib tham video PTZ lub koob yees duab tuaj yeem ua haujlwm nrog txhua qhov kev sib tham hauv online: Zoom, Skype, Google Hangout, Cisco WebEx, Microsoft Team, GoToMeeting, BlueJeans, thiab lwm yam.







Peb daim ntawv pov thawj: CE, FCC, RoHS thiab lwm yam





Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;

Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.



Dab tsi hauv lub thawv?

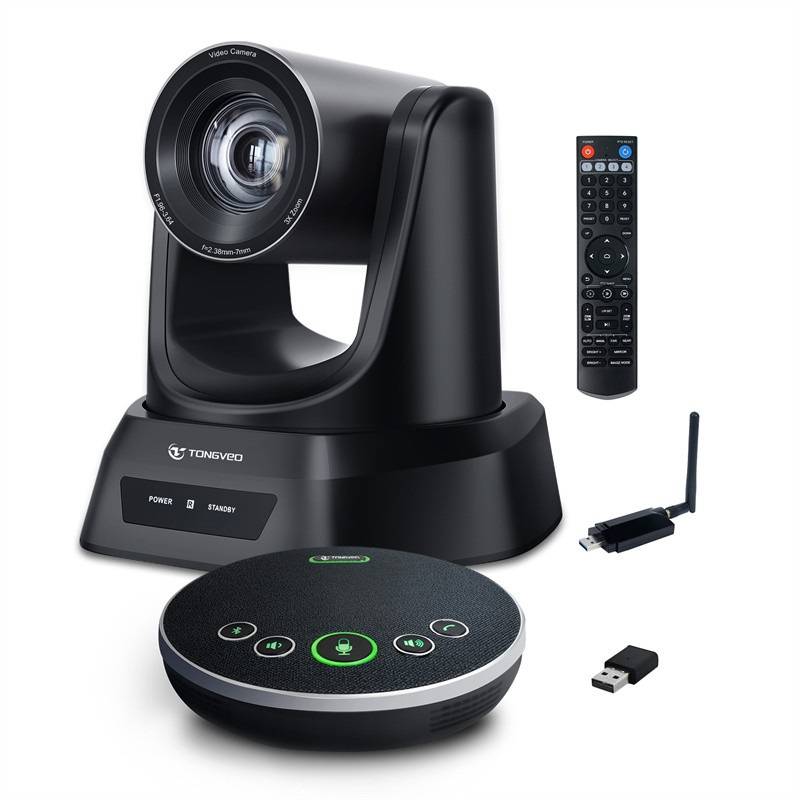

TV-UV200 ptz lub koob yees duab thiab M3-B wireless video rooj sib tham system suav nrog 3x zoom ptz lub koob yees duab thiab M3B Bluetooth microphone, thiab tag nrho cov khoom siv cuam tshuam.







Q: Koj puas muab cov qauv?

A: Yog, peb tuaj yeem muab cov qauv rau koj. Feem ntau, peb yuav xa koj tib hnub thaum peb tau txais koj cov xaj;



Q: Koj lub sijhawm them nyiaj yog dab tsi?

A: 30% tso nyiaj them ua ntej ua ntej thiab 70% tshuav nyiaj them ua ntej xa khoom.



Q: Daim ntawv them nqi twg koj tuaj yeem txais?

A: T / T, Western Union, PayPal thiab lwm yam. Peb lees txais txhua lub sijhawm them nyiaj yooj yim thiab nrawm.



Q: Koj lub sijhawm ntawm kev xa khoom yog dab tsi?
A: Peb lub sijhawm xa khoom zoo ib yam yog FOB Shenzhen. Peb kuj lees txais EXW, CFR, CIF, DDP, DDU thiab lwm yam. Peb yuav muab cov nqi thauj khoom rau koj thiab koj tuaj yeem xaiv qhov uas yooj yim tshaj plaws rau koj.



Q: Txoj kev shipping twg koj tuaj yeem muab tau?

A: Peb tuaj yeem muab kev xa khoom los ntawm hiav txwv, los ntawm huab cua thiab nthuav qhia.

Cim npe nrov: Tuam Tshoj wireless video rooj sib tham system manufacturers, lwm tus neeg, Hoobkas
