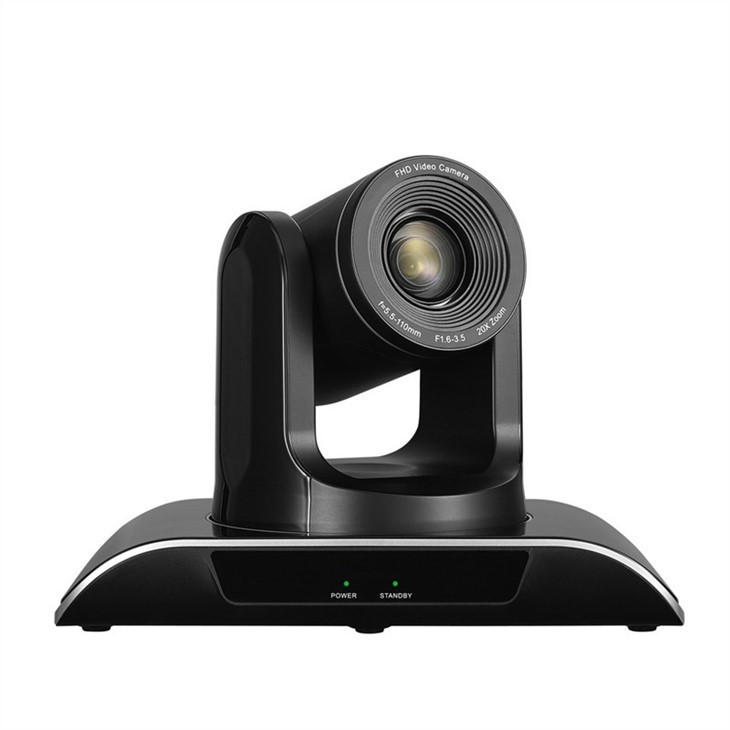

Pheej Yig PTZ Chaw Taws Teeb Tswj Lub Koob Yees Duab rau Lub Koom Txoos

Kev piav qhia

Nyob rau hauv lub neej niaj hnub no, kev tshaj tawm hauv xov xwm, kev lag luam tua video luv luv thiab cov xov xwm hauv online muaj feem ntau hauv internet, thiab lawv txhua tus yuav tsum siv lub koob yees duab los tsim thiab tua tom haujlwm. Raws li tus neeg muag khoom ntawm lub koob yees duab, peb muaj ntau lub koob yees duab rau kev muag khoom, nrog rau lub koob yees duab yias tilt zoom lub koob yees duab rau lub tsev teev ntuj, 360 lub koob yees duab rau lub rooj sib tham zoom thiab pheej yig ptz koob yees duab rau pawg ntseeg. Nqis PTZ Chaw Taws Teeb Tswj Yees Duab Yees Duab rau Lub Koom Txoos yog ib qho ntawm peb cov khoom muag zoo tshaj plaws, nruab nrog 1/2.9-inch CMOS sensor thiab cov ntsiab lus siab ntawm 2.38 lab pixels. Nws muab tag nrho HD (1080p) thiab cov ntsiab lus siab interlaced scanning (30i) tso tawm cov kev daws teeb meem ntawm qhov nrawm ntawm 1080 thav duab ib ob, uas tuaj yeem pom cov duab zoo nkauj zoo nkauj thaum tua thiab txhaj qhov tseem ceeb rau hauv koj qhov kev tsim.



Nta

1. Kev hloov kho yooj yim: Cov chaw taws teeb tswj lub koob yees duab yees duab rau lub tsev teev ntuj muaj PTZ thev naus laus zis, uas ua rau cov neeg siv tau yooj yim tswj cov kev txhais lus meej, qaij thiab zoom ntawm lub fuselage los ntawm cov chaw taws teeb tswj. Nws kab rov tav txhais ntau yog -170 rau +170, thiab nws txoj kab ntsug ntsug yog -90 rau +90, uas tuaj yeem yooj yim tau txais cov duab xav tau hauv ntau qhov xwm txheej.



2. Ntau hom kev teeb tsa: Lub koob yees duab muab ntau yam kev xaiv hauv kev teeb tsa, suav nrog kev teeb tsa hauv qab nthab, phab ntsa mounting, tripod installation, thiab txawm tias muaj kev sib tham sib whiteboards, tag nrho cov uas tuaj yeem muab kev pom tsis muaj teeb meem.



3. Yooj yim thiab siv tau yooj yim: Nws siv plug-and-play USB kev sib txuas hom, thiab muaj kev sib txuas zoo sib xws nrog ntau yam softwares xws li Skype, MS Teams, Google Meet, Cisco Webex, Zoom, BlueJeans, GoToMeeting, thiab lwm yam, thiab tuaj yeem paub qhov cuam tshuam ntawm kev hu xov tooj thiab kev sib tham hauv xov tooj tau yooj yim.



4. HD video zoo: Txhawm rau muab qhov pom kev zoo dua, lub koob yees duab txhawb nqa 1080P HD video. Tsis tas li ntawd, nws kuj muaj qhov ua haujlwm ntawm nws pib-focus, uas tuaj yeem tua cov yeeb yaj kiab meej txawm nyob hauv qhov chaw tsis muaj teeb pom kev zoo, pab cov neeg siv sib txuas lus thiab koom tes nrog lwm tus.





Khoom Parameter

Qauv	TSI 800
Sensor	1/2.9 nti CMOS
Muaj txiaj ntsig pixel	2.38 mega pixel daws teeb meem
Video system	1080p-30/25, 720p-30/25
Zoom	20x optical zoom
Lens	f=5 5-110 hli
Aperture	F1.6-3.5
Lub kaum sab xis	58.6 degree (W) -3.6 degree (T)
Diagonal	60.2 degree (W) -3.7 degree (T)
FOV	55,5 degree
Video tso zis	USB, HDMI, SDI, RJ45
Video daws teeb meem	1080P (1920 * 1080) thiab lwm yam
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	64
Tswj lub davhlau ya nyob twg	RS -232, RS485
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG, YUV
Kab rov tav tig	35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s
Vertical rotation	18 0 degree (± 90 degree) 0.1 degree / s -80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247 * 165 * 170 hli
Khoom hnyav	1.46kg / 2.85kg (net / tag nrho qhov hnyav)



Daim ntawv thov khoom

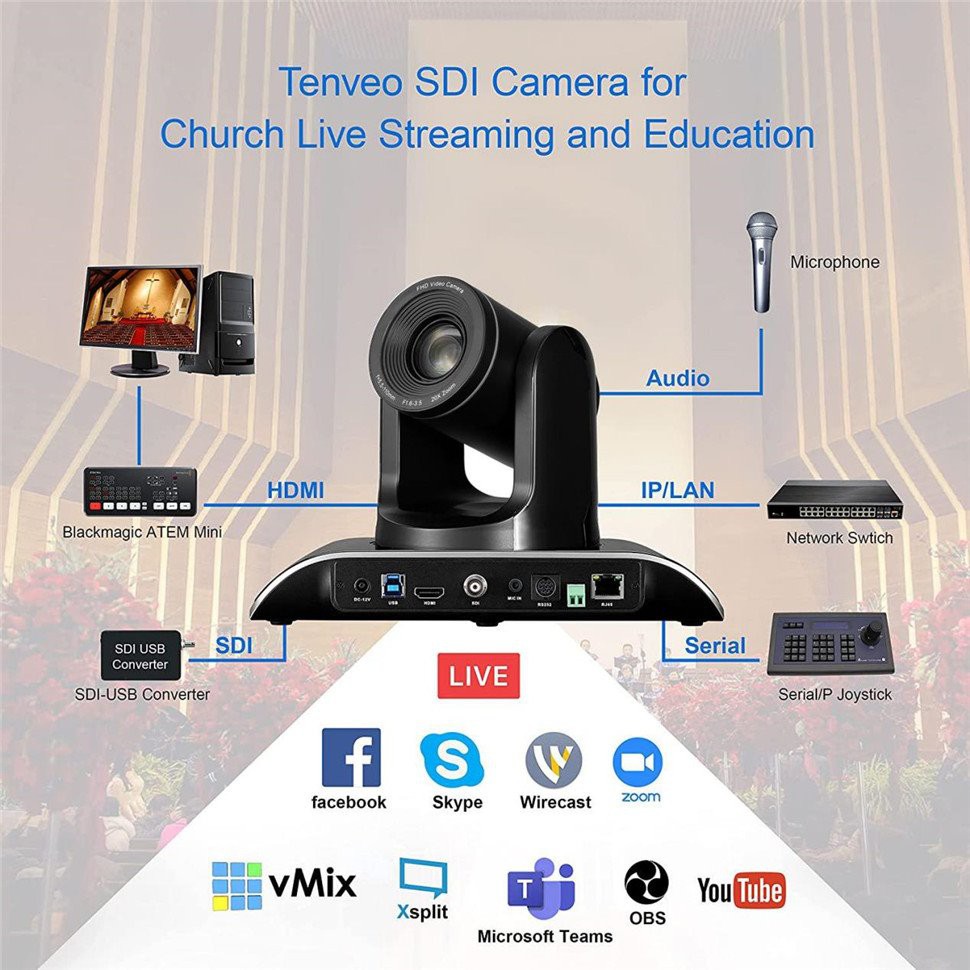

Lub koob yees duab tau sib xws nrog feem ntau ntawm cov software tseem ceeb xws li Skype, Microsoft Teams, Google Meet, Cisco, Zoom, Webex, Vmix, GoToMeeting, thiab lwm yam.



Precise Control

Txhawb infrared tswj, RS232 tswj, RJ45 web tswj, txhawb VISCA, PELCO-D, PELCO-P, raws tu qauv-D;

Preset txoj hauj lwm: 10 los ntawm IR chaw taws teeb tswj; 64 los ntawm PELCO-D, PELCO-P; IR chaw taws teeb tuaj yeem kho (0-9) preset txoj haujlwm thiab rov qab mus rau qhov chaw teeb tsa nrog ib lub pob, ua rau lub rooj sib tham yooj yim dua;

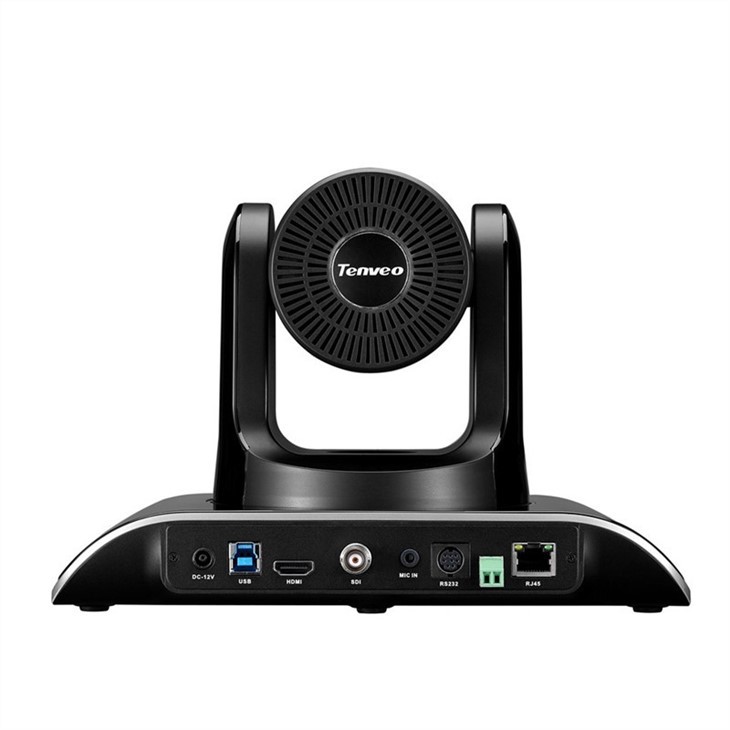

RJ45, HDMI, SDI, thiab USB 4 video outputs; nws muaj peev xwm ib txhij tso zis max 1080P @ 30fps video los ntawm USB, SDI, HDMI thiab IP streaming;

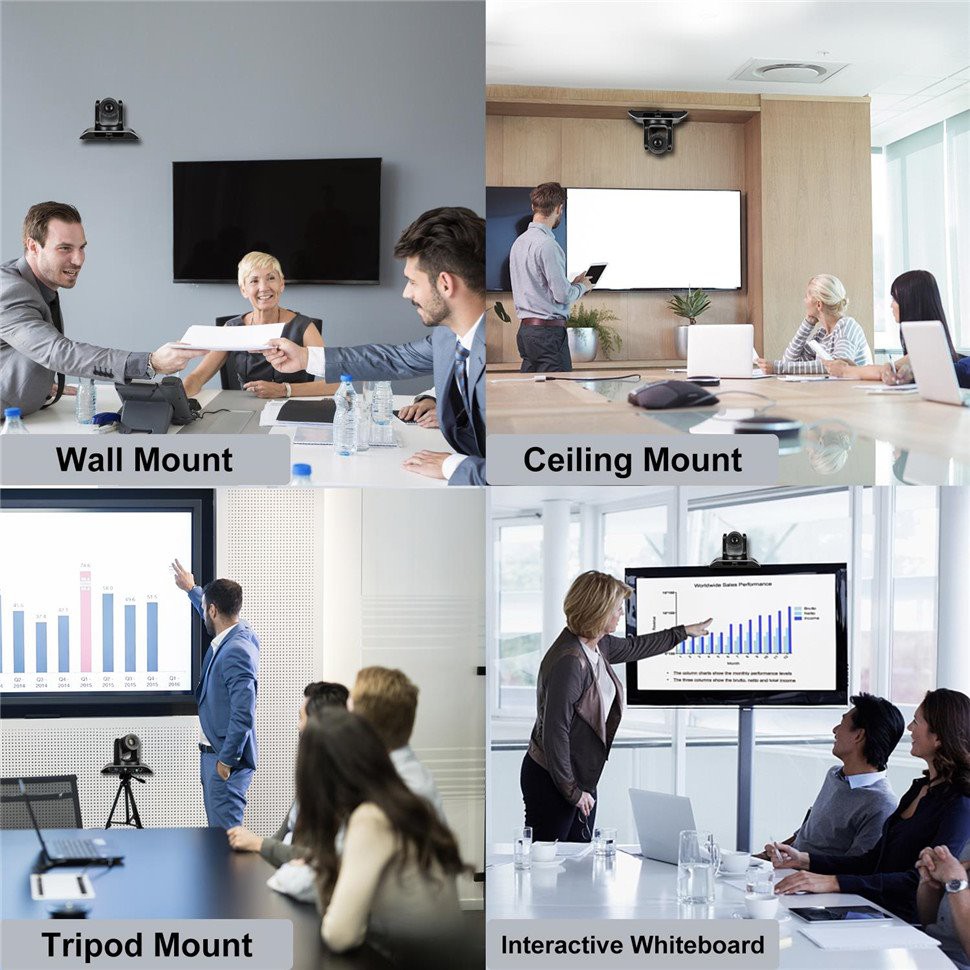

Ntau yam Mounting Options

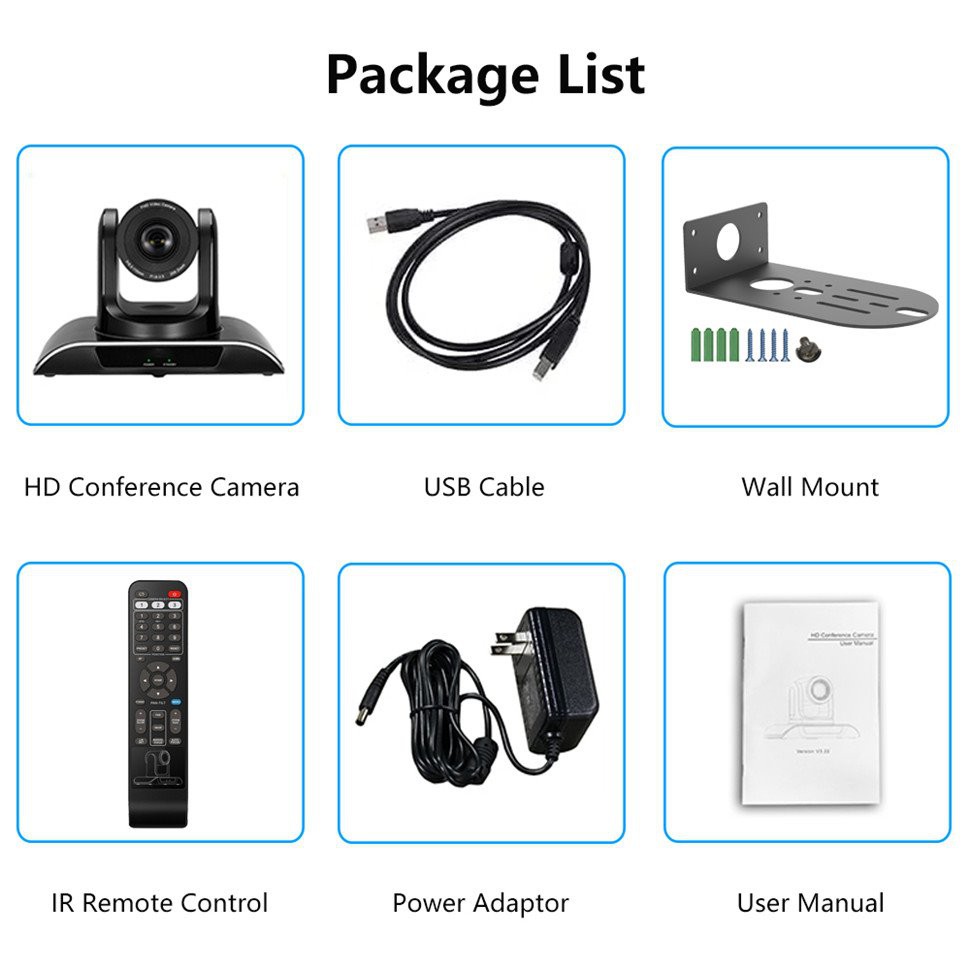

Dab tsi hauv lub thawv?

Cov pob suav nrog lub koob yees duab HD lub rooj sib tham, USB cable, fais fab adapter, IR chaw taws teeb tswj, phab ntsa mount thiab cov neeg siv phau ntawv.



FAQ

Q: Koj puas muab tus qauv?

A: Yog lawm, peb tuaj yeem muab cov qauv rau koj. Feem ntau, peb yuav xa koj tib hnub thaum peb tau txais koj cov xaj;



Q: Koj lub sijhawm them nyiaj yog dab tsi?

A: Thaum koj yuav qhov Ruaj Ntseg PTZ Lub Koob Yees Duab Yees Duab rau Lub Koom Txoos, peb xav kom koj them 30% nqes them ua ntej tsim thiab 70% tshuav nyiaj them ua ntej xa khoom.



Q: Daim ntawv them nqi twg koj tuaj yeem txais?

A: T / T, Western Union, PayPal, thiab lwm yam. Peb lees txais txhua lub sijhawm them nyiaj yooj yim thiab nrawm.



Q: Peb tuaj yeem tau txais cov lus hais li cas?

A: Hu rau peb nrog cov lus qhia tshwj xeeb: xws li cov khoom siv, tsim, qhov loj me, cov duab, xim, kom muaj nuj nqis, nto tiav, thiab lwm yam.



Q: Koj puas tuaj yeem pab tus tsim?

A: Yog, Tsuas yog tsim dawb xwb, tsim tshwj xeeb yuav tsum tau them.
