High-Definition 30x Zoom HDMI SDI IP Lub Rooj Sib Tham Lub Koob Yees Duab rau Cov Rooj Sib Tham Loj

Khoom Taw Qhia:

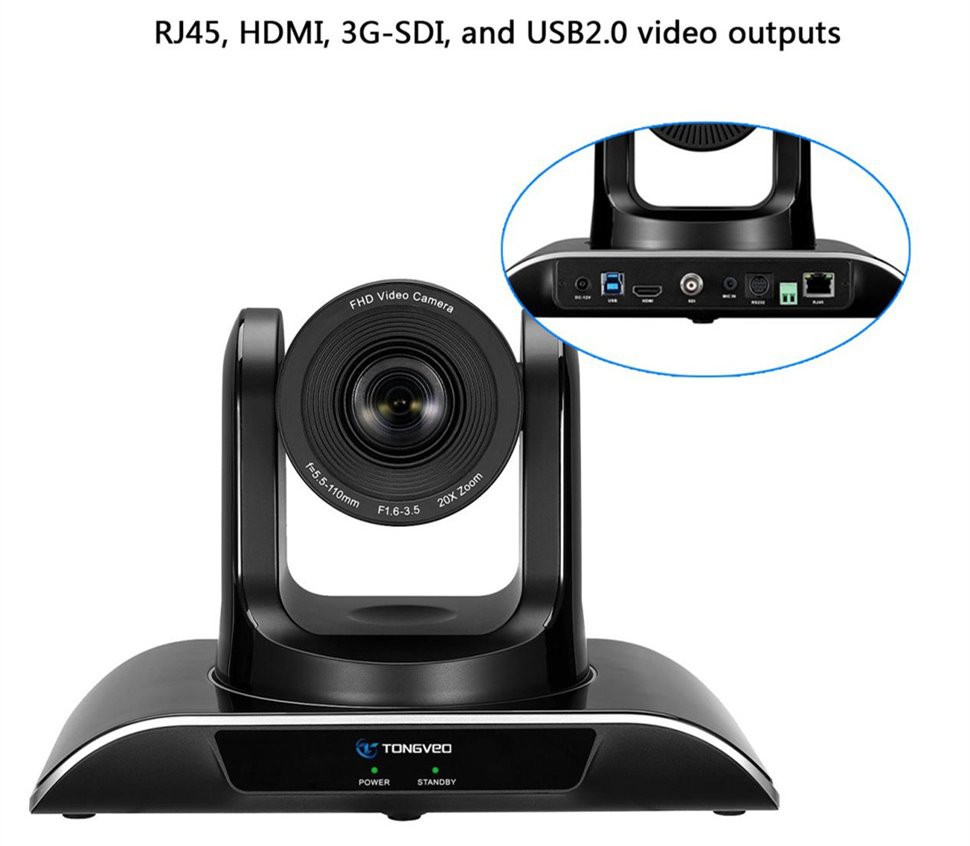

Lub VC800 lub koob yees duab tau txais nrog RJ45, HDMI, 3G-SDI, thiab USB2.0 video outputs.1/2.9 '' CMOS HD CMOS nrog 2.38 mega pixel thiab Full HD 1080p & 1080i tso zis daws teeb meem thiab siab dynamic duab ntawm 30 fps. VC800 20x optical zoom lub koob yees duab, koj tuaj yeem teeb 10 presets los ntawm IR chaw taws teeb, thiab 64 presets los ntawm PELCO-D, PELCO-P.

Khoom Parameter

Qauv	TV-V 20 AL
Sensor	1/2.9 nti CMOS
Muaj txiaj ntsig pixel	2.38 mega pixel daws teeb meem
Video system	1080p-30/25, 720p-30/25
Zoom	20x optical zoom
Lens	f=5 5-110 hli
Aperture	F1.6-3.5
Lub kaum sab xis	58.6 degree (W) -3.6 degree (T)
Diagonal	60.2 degree (W) -3.7 degree (T)
FOV	55,5 degree
Video tso zis	USB, HDMI, SDI, RJ45
Video daws teeb meem	1080P (1920 * 1080) thiab lwm yam
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	64
Tswj lub davhlau ya nyob twg	RS -232, RS485
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG, YUV
Kab rov tav tig	35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s
Vertical rotation	18 0 degree (± 90 degree) 0.1 degree / s -80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247 * 165 * 170 hli
Khoom hnyav	1.46kg / 2.85kg (net / tag nrho qhov hnyav)



Khoom feature thiab daim ntawv thov

HDMI Video Conference room koob yees duab tuaj yeem siv rau kev sib tham video, chav kawm online, nyob streaming, tele-medicine, pawg ntseeg thiab lub tsev hais plaub digital;

Tau tshaj feem ntau ntawm cov software tseem ceeb xws li Skype, Microsoft Teams, Google Meet, Cisco, Zoom, Webex, Vmix, GoToMeeting, thiab lwm yam.





Cov lus qhia ntau lawm

20x Optical Zoom 1080P HD Yees Duab Yees Duab; FOV: 55.5 degree;

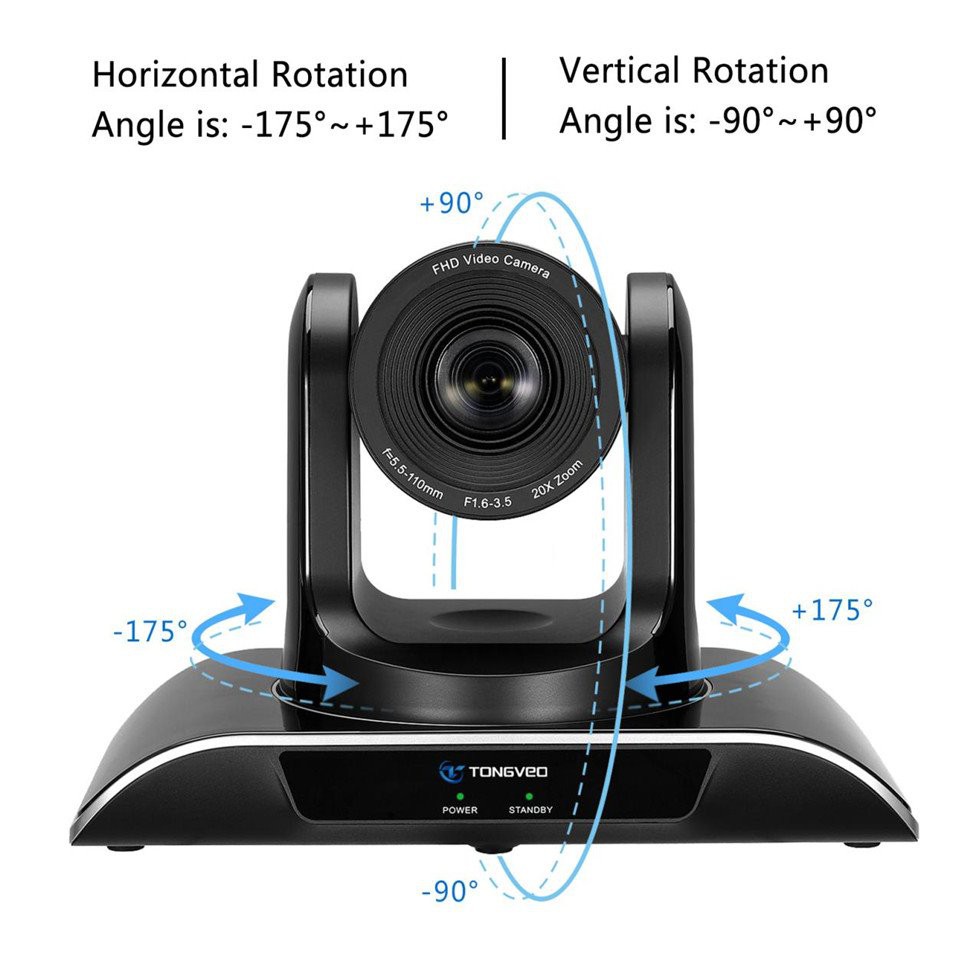

Txhawb kab rov tav lub kaum sab xis yog: -175 degree ~ +175 degree, ntsug tig lub kaum sab xis yog: -90 degree ~ +90 degree ;

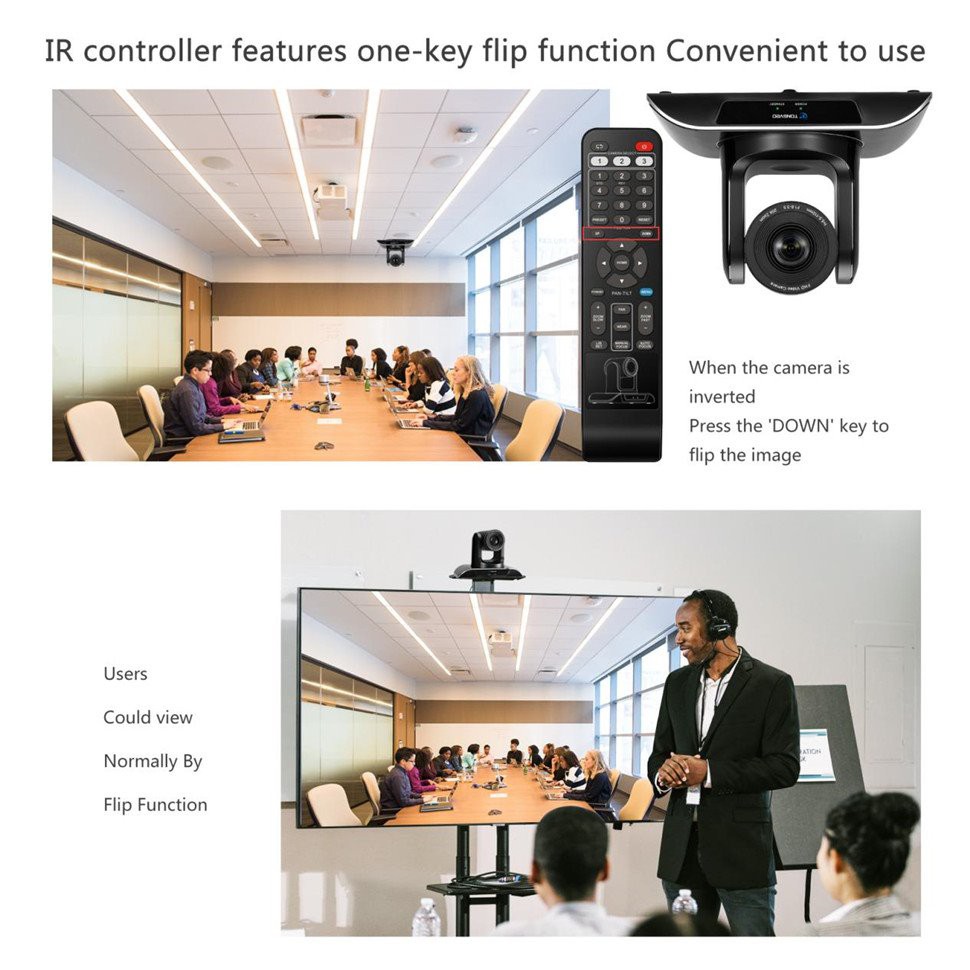

Txhawb infrared tswj, RS232 tswj, RJ45 web tswj, txhawb VISCA, PELCO-D, PELCO-P, raws tu qauv-D;





























Preset txoj hauj lwm: 10 los ntawm IR chaw taws teeb tswj; 64 los ntawm PELCO-D, PELCO-P;

RJ45, HDMI, SDI, thiab USB 4 video outputs; nws muaj peev xwm ib txhij tso zis max 1080P @ 30fps video los ntawm USB, SDI, HDMI thiab IP streaming;

Lub koob yees duab yog sib xws nrog qab nthab, phab ntsa mount thiab tripod thiab lwm yam, nws tuaj yeem yooj yim ntes koj cov duab xav tau;

Khoom tsim nyog

Peb daim ntawv pov thawj: CE, FCC, RoHS thiab lwm yam



Xa, nkoj thiab pab

Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;
Ntim:

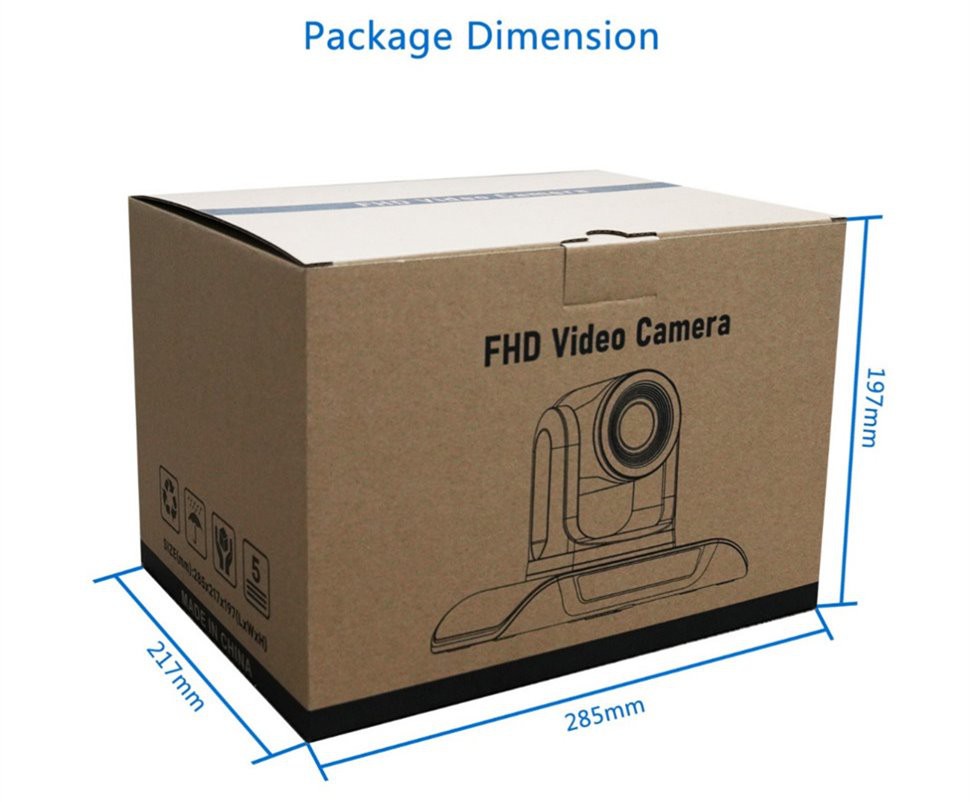

Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.

Dab tsi hauv lub thawv?

Cov pob suav nrog HD lub koob yees duab sib tham, USB cable, fais fab adapter, IR chaw taws teeb tswj, phab ntsa mount thiab cov neeg siv phau ntawv.

Lub Hwjchim ntawm HDMI SDI IP Lub Rooj Sib Tham Lub Koob Yees Duab

Precision hauv Txhua Ncej: Thaum nws los txog rau kev sib tham video, cov ntsiab lus tseem ceeb. HDMI SDI IP lub rooj sib tham lub koob yees duab yog engineered los xa impeccable precision thiab clarity. Nws yog koj daim pib rau cov rooj sib tham thiab kev nthuav qhia, qhov twg txhua pixel los txog rau lub neej.


Unleash lub peev xwm nrog 30x Zoom IP Lub Koob Yees Duab Sib Tham

Zoom rau hauv Excellence: Xav txog qhov muaj peev xwm zoom hauv thiab tsom mus rau tus hais lus, whiteboard, lossis lub vijtsam nthuav qhia nrog qhov tseeb ntawm 30x optical zoom. Lub koob yees duab lub rooj sib tham IP no muaj qhov muaj peev xwm, kom ntseeg tau tias tsis muaj kev nthuav dav mus tsis pom.


Tailor-made for Loj Conference Rooms

Size Raws Li Tshuab: Cov chav sib tham loj feem ntau ua rau muaj teeb meem tshwj xeeb ntawm kev pom thiab kev koom tes. Lub koob yees duab lub rooj sab laj no yog tsim los daws cov teeb meem uas tshwm sim. Nws lub kaum sab xis dav thiab lub zog zoom ua rau nws lub koob yees duab zoo meej rau chav sib tham loj, ua kom txhua tus pom thiab hnov ​​​​zoo.


HDMI Conference Lub Koob Yees Duab rau Seamless Integration

Txuas thiab sib koom ua ke: lub koob yees duab sib tham HDMI tso cai rau kev sib koom ua ke nrog koj qhov teeb tsa AV uas twb muaj lawm. Txawm hais tias koj tab tom tuav cov rooj sib tham video, kev nthuav qhia, lossis kev sib tham hauv hlwb, HDMI Video Conference room lub koob yees duab sib xyaw ua ke rau hauv koj chav sib tham.


FAQ

Q: Dab tsi ntawm koj cov khoom?

A: Tam sim no peb muaj USB ptz koob yees duab, HDMI / SDI / USB ptz koob yees duab, webcams, video & audio conference kits, thiab microphones;



Q: Koj lub lag luam loj yog dab tsi?

A: Teb chaws Europe, North America, South America, Australia, Middle East, thiab lwm yam.



Q: Koj puas muaj QC department?

A: Yog, peb muaj 6 tus neeg QC



Q: Koj puas muaj chav ua yeeb yam?

A: Yog, chav ua yeeb yam nrog ntau yam khoom.



Q: Koj puas tuaj yeem hloov kho rau cov neeg siv khoom?

A: Yog, peb tuaj yeem hloov kho raws li koj xav tau, peb muaj R & D department, peb cov neeg tsim khoom tuaj yeem tsim qauv rau koj thiab peb cov kws tshaj lij ua cov qauv.


Zoo siab txais tos rau Peb Kev Lag Luam Zoo Tshaj Plaws hauv Suav teb

Peb zoo siab heev nyob rau hauv peb lub luag hauj lwm raws li ib tug ntawm cov ua manufacturers nyob rau hauv Suav teb. Peb txoj kev cog lus rau kev ua tau zoo thiab kev tsim kho tshiab tau tso cai rau peb muab cov khoom lag luam zoo ntawm tus nqi qis kawg, ua rau peb muaj kev xaiv rau kev lag luam wholesale.


Manufacturing Prowess nyob rau hauv Suav teb

Tuam Tshoj tau ntev tau lees paub tias yog lub ntiaj teb hub rau kev tsim khoom, thiab peb txaus siab los ua ib feem ntawm cov cuab yeej cuab tam no. Peb cov khoom zoo siab dais daim ntawv lo "Ua hauv Suav teb," ua pov thawj rau qhov tseeb thiab kev txawj ntse uas txhais tau tias peb cov txheej txheem tsim khoom.


Zoo ntawm tus nqi sib tw

Hauv kev sib tw ua lag luam niaj hnub no, tus nqi plays lub luag haujlwm tseem ceeb. Peb nkag siab tus nqi ntawm kev them taus yam tsis muaj kev cuam tshuam rau qhov zoo. Peb qhov kev cog lus rau kev xa khoom ntawm tus nqi tsis txaus ntseeg kom ntseeg tau tias koj tau txais txiaj ntsig zoo tshaj plaws rau koj cov peev txheej.


Lag luam wholesale Solutions rau koj lub lag luam

Txawm hais tias koj yog tus tswv lag luam me lossis cov lag luam loj, peb cov kev xaiv lag luam wholesale yog tsim kom tau raws li koj xav tau. Peb muab ntau yam khoom uas haum rau ntau yam kev lag luam, kom ntseeg tau tias koj tuaj yeem nrhiav cov kev daws teeb meem uas koj xav tau ntawm tus nqi uas haum koj cov peev nyiaj.



Cim npe nrov: High-Definition 30x Zoom HDMI SDI IP Lub Rooj Sib Tham Lub Koob Yees Duab rau Cov Rooj Sib Tham Loj, Tuam Tshoj High-Definition 30x Zoom HDMI SDI IP Lub Rooj Sib Tham Lub Koob Yees Duab rau Cov Rooj Sib Tham Loj Chaw tsim khoom, cov chaw muag khoom, Hoobkas
