Ndi Ptz Lub Koob Yees Duab Rau Lub Koom Txoos Live Streaming
USB 3.0 ptz koob yees duab;
10 x optical zoom
ptz lub koob yees duab rau lub tsev teev ntuj nyob streaming;
Nrog 77 degree qhov dav ntawm qhov pom;
Ntau cov duab cov ntsiab lus tsis poob zoo;
Embed qhov tseeb NDI thiab POE, xoom-latency thiab zoo meej rau kev nyob online;
Hauj lwm lawm
Khoom Taw Qhia
Lub Tongveo VL10N(NDI) ndi ptz koob yees duab, yog eqiuipped nrog tseeb NDI/HX, SDK, PoE, USB 3.0, Sony Sensor, 1080P full HD daws teeb meem. Nws muab cov yeeb yaj kiab ntse, xim zoo nkauj, thiab qhov tseeb qhov tseeb tshwj xeeb. Nws built-in AI thev naus laus zis optimizes lub teeb sib npaug los hais txog lub ntsej muag thiab ua kom pom cov tawv nqaij zoo nkauj txawm nyob hauv qhov tsaus ntuj lossis teeb pom kev zoo.
Khoom Parameter
|
Qauv |
VL10N (NDI) |
|
Sensor |
Sony IMX{0}}/2.8" CMOS |
|
Muaj txiaj ntsig pixel |
2.07 MP |
|
Video system |
1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 640 * 480P @ 30fps, 320 * 240P @ 30fps; YUY2 / NV12 / H.264 / H.265 / MJPG) |
|
Zoom |
10 x optical zoom |
|
Lens |
f=432-40.9 hli |
|
Aperture |
F1.76-F3.0 |
|
Diagonal Lub kaum sab xis |
75.4 degree |
|
Video tso zis |
USB 3.0, HDMI |
|
Kev them nyiaj yug Backlight |
Txhawb nqa |
|
SNR |
>50dB ib |
|
Digital Noise Reduction |
2D & 3D Noise txo |
|
Teeb liab txheem |
NTSC/PAL |
|
I / O interface |
|
|
Video Interfaces |
HDMI, HOM-C, RJ45 |
|
Video Compression Format |
H.264, H.265, MJPG, YUY2 |
|
LAN |
10M / 100M adaptive Ethernet chaw nres nkoj; Txhawb POE IEEE 802.3af |
|
Network raws tu qauv |
NDI|HX2, RTSP, RTMP, ONVIF, GB28181; Txhawb VISCA Tshaj IP |
|
Tswj raws tu qauv |
VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
|
Tswj raws tu qauv |
UVC 1.1 |
|
Yam tsawg kawg Illumination |
VISCA/Pelco-D/Pelco-P; Baud tus nqi: 38400/9600/4800/2400 |
|
Tswj interface |
Ntau dua lossis sib npaug rau RS232 (tsuas yog cov tswv yim), RS485, TYPE-C (UVC1.1), RJ45 |
|
PTZ Parameter |
|
|
Pan / Tilt Rotation |
± 175 degree, -90 degree -+90 degree |
|
Pan Control Ceev |
0 1 -80 degree /sec |
|
Tilt Control Ceev |
0 1 -60 degree /sec |
|
Preset Number |
Tus neeg siv tuaj yeem teeb tsa txog 255 presets (10 presets los ntawm IR chaw taws teeb) |
|
Cov Txheej Txheem Ua Haujlwm |
Windows 7, Windows 8.1, Windows 10, Windows 11; Android, Mac OS™ 10.10 lossis siab dua, Linux (Yuav tsum tau txhawb UVC.) |
Khoom feature thiab daim ntawv thov
VL10N ndi ptz lub koob yees duab tuaj yeem siv rau chav sib tham video, kev kawm hauv online chaw taws teeb, nyob streaming, kho mob, tsev teev ntuj thiab lub tsev hais plaub digital; Tau tshaj feem ntau video thiab suab software;
Cov lus qhia ntau lawm
10x optical zoom lub koob yees duab, nrog USB3.0, HDMI thiab RJ45 video tso zis;
VL10N NDI ptz koob yees duab xa koj cov duab video uas muaj cov ntsiab lus, txawm tias koj zoom rau hauv kev tshuaj xyuas cov detials, cov duab zoo li pom los ntawm ob lub qhov muag tsis muaj kev cuam tshuam;

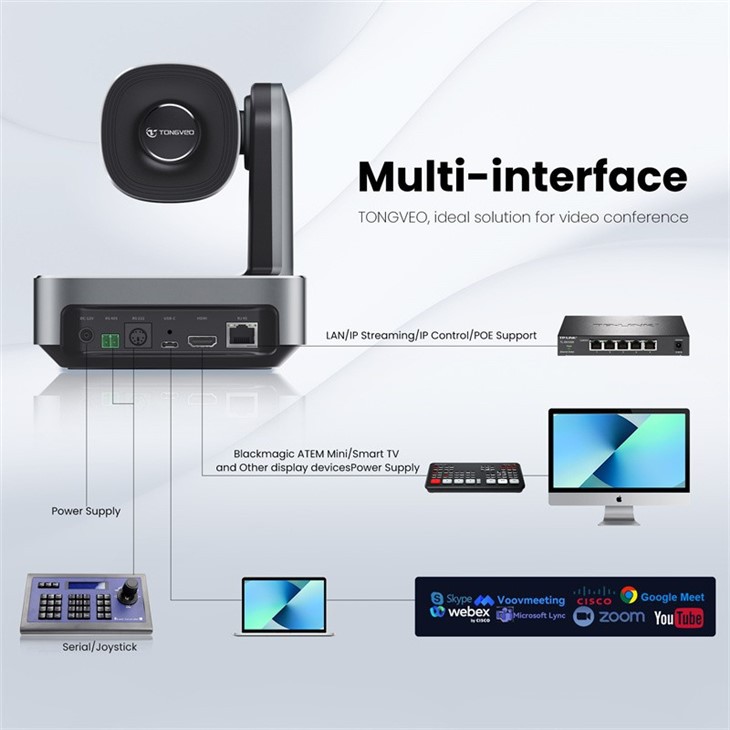

Ntau-interface, hloov tau yooj yim tus kheej xaiv rau koj; nrog rau USB 3. USB 3.
tuaj yeem txhim kho lub rooj sib tham tau zoo heev thiab zam kom tsis txhob muaj video freezes. f koj xav siv lub TV loj, VL10N NDI ptz lub koob yees duab kuj muaj HDMl ports rau koj xaiv.
Lub koob yees duab NDI ptz yog nruab nrog lub lens ntawm lub kaum sab xis dav, uas txhais tau hais tias lub koob yees duab tuaj yeem npog ntau yam thiab muab kev pom zoo. Nws yuav ua rau koj xav tsis thoob nrog nws qhov kev sib hloov nyob ntsiag to thiab du ( qaij kev sib hloov: +90 degree, yias rotation: 175 degree ).
Cov neeg siv tuaj yeem teeb tsa 10 txoj haujlwm preset los ntawm IR chaw taws teeb, thiab 255 los ntawm POLO P thiab POLO D;
Tau tshaj feem ntau ntawm Video thiab suab lub rooj sib tham, xws li Skype, MS Teams, Google ntsib, Webex, Vmix, Zoom, Youtube thiab Facebook;
Khoom tsim nyog
Peb daim ntawv pov thawj:CE, FCC, RoHS thiab lwm yam
Xa, shipping thiab pab
Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;
Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.

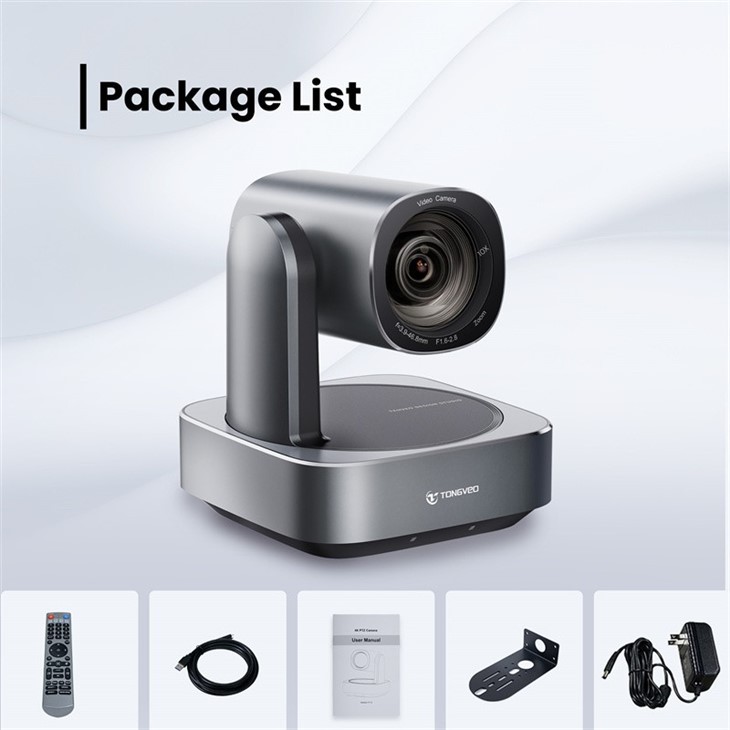

Dab tsi hauv lub thawv?
Lub thawv txheem suav nrog 1 pcs lub koob yees duab, IR chaw taws teeb, USB cable, phab ntsa mount, fais fab adapter, thiab tus neeg siv tus qauv;
FAQ
Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom tshwj xeeb hauv USB ptz koob yees duab, HDMI / SDI / USB / NDI ptz koob yees duab thiab nws pib taug qab ptz koob yees duab, webcams, yees duab & lub rooj sib tham cov khoom siv, thiab microphones.
Q: Koj puas tuaj yeem ua OEM thiab ODM?
A: Yog, OEM thiab ODM kev pabcuam yog ob qho tib si txais. Qhov yooj yim kom muaj nuj nqis peb yuav qhia tom qab peb sib tham.
Q: Peb puas tuaj yeem siv peb lub logo?
A: Yog lawm, peb tuaj yeem luam koj tus kheej lub logo raws li koj qhov kev thov.
Q: Koj muaj pes tsawg lub ntim?
A: 1 pcs nrog ib pob txheem.
Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?
A: Tam sim no peb muaj USB ptz koob yees duab, HDMI / SDI / USB / NDI ptz koob yees duab, nws pib taug qab ptz lub koob yees duab webcams, cov khoom siv yees duab & lub rooj sib tham, thiab microphones.
Cim npe nrov: ndi ptz koob yees duab rau tsev teev ntuj nyob streaming, Tuam Tshoj ndi ptz lub koob yees duab rau lub tsev teev ntuj nyob streaming manufacturers, lwm tus neeg, Hoobkas
