pab pawg video conferencing zoom koob yees duab

Txheej txheem cej luam

Cov pab pawg video conferencing zoom lub koob yees duab yog sib xws nrog ntau yam kev sib tham software, suav nrog Skype, Microsoft Teams, Google Meet, Cisco Webex, thiab Zoom. Yog li ntawd, nws yog qhov tsim nyog rau cov rooj sib tham ua lag luam, cov rooj sib tham hauv pab pawg, cov rooj sib tham qhia chaw nyob deb lossis cov rooj sib tham qhia txog cov khoom tshiab, thiab lwm yam. Txhawm rau kom yooj yim rau kev khiav lag luam, peb tsim cov keyboard controller thiab infrared chaw taws teeb tswj rau lub koob yees duab zoom no rau chav sib tham uas tuaj yeem pab tau. ua tiav qhov kev hloov kho kom pom tseeb thiab lub kaum sab xis tig. Tshwj xeeb tshaj yog rau cov chav sib tham loj, qhov haujlwm no tuaj yeem pab cov neeg hais lus kho kom pom tseeb ntawm lub vijtsam remotely kom cov ntsiab lus raug ntau dua. Rau kev qhia kho mob hauv online, pab pawg sib tham video koob yees duab tuaj yeem tso cai rau cov tub ntxhais kawm kom pom cov txheej txheem ua haujlwm zoo dua los ntawm kev sib hloov lub kaum sab xis thiab hloov kho kom haum, yog li ua tiav cov txiaj ntsig kev kawm zoo dua. Tsis tas li ntawd, nws tuaj yeem ua rau kev ua haujlwm ntawm lub microphone.





Khoom Parameter

Qauv	TSI 800
Sensor	1/2.8 nti CMOS
Muaj txiaj ntsig pixel	2.38 megapixel daws
Video system	1080p-30/25, 720p-30/25
Zoom	20x optical zoom
Lens	f=5 5-110 hli
Aperture	F1.6-3.5
Lub kaum sab xis	58.6 degree (W) -3.6 degree (T)
Diagonal	60.2 degree (W) -3.7 degree (T)
FOV	55,5 degree
Video tso zis	USB, HDMI, SDI, RJ45
Video daws teeb meem	1080P (1920 * 1080) thiab lwm yam
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	64
Tswj lub davhlau ya nyob twg	RS -232, RS485
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG, YUV
Kab rov tav tig	35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s
Vertical rotation	18 0 degree (± 90 degree) 0.1 degree / s -80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247 * 165 * 170 hli
Khoom hnyav	1.46kg / 2.85kg (net / tag nrho qhov hnyav)



Khoom feature thiab daim ntawv thov

1. Khaws daim duab loj dua
Lub koob yees duab yees duab no rau kev sib tham muab qhov dav 55.5-degree saib kom ntseeg tau tias txhua tus neeg tuaj koom, kev nthuav qhia thiab cov ntawv dawb nyob hauv kab. Nws tuaj yeem ntes cov duab loj dua hauv ntau hom kev sib tham ntau tus neeg thiab cov rooj sib tham sib tham.



2. du thiab muaj tseeb
Lub koob yees duab sib tham hauv pawg no muaj qhov zoo heev 60 ntas ib ob (fps) tus nqi, yog li cov duab nws nthuav tawm tsis yog tsuas yog du tab sis zoo li lub neej. Qhov no kuj txhais tau hais tias txhua qhov taw qhia, kev qhia thiab kev nthuav qhia swb ntawm tus neeg nthuav qhia tuaj yeem qhia meej meej rau lub qhov muag ntawm cov neeg tuaj saib.

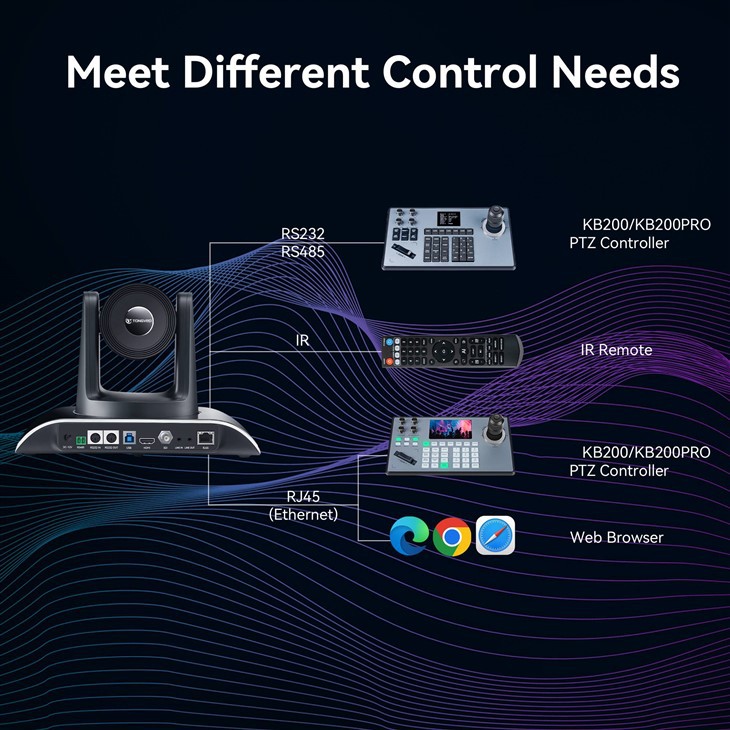

3. Yooj yim tswj
Lub koob yees duab lub rooj sib tham hauv computer no tso cai rau koj los tswj nws tsis muaj zog ua tsaug rau nws lub infrared maub los nrog ib qho kov flip muaj nuj nqi. Raws li txoj haujlwm no, lub koob yees duab no tuaj yeem ua tiav txoj kab rov tav los ntawm -170 degree mus rau +170 degree thiab ntsug tig ntawm -90 degree mus rau +90 degree .



4. Multifunctional interface
Cov pab pawg video conferencing zoom lub koob yees duab yog inherently ntau yam raws li nws nta ntau yam interfaces xws li RJ45, HDMI, SDI thiab USB 4.0 video outputs. Qhov kev teeb tsa no ua kom ntseeg tau tias nws tuaj yeem sib txuas nrog ntau lub rooj sib tham thiab cov cuab yeej siv, yog li zam lub rooj sib tham xaus vim yog cov khoom siv tsis sib xws.













Cov lus qhia ntau lawm

20x optical zoom 1080P HD yees duab lub koob yees duab; nws ntiav 1/2.8 nti CMOS sensor, kev daws teeb meem yog mus txog 1920 * 1080P @ 60Hz, nrog 55.5 degree dav ntawm saib;



Yias kab rov tav ntawm -175 degree rau +175 degree thiab qaij ntsug ntawm -90 degree rau +90 degree yooj yim.

Tau preset 10 txoj hauj lwm ntawm IR chaw taws teeb controller, thiab 64 los ntawm keyboard controller;

ntau qhov sib cuam tshuam, suav nrog RJ45, HDMI, SDI, thiab USB 4.0 video outputs

Nrog 3.5mm suab input, koj muaj peev xwm txawm input lub microphone los yog lub computer tso zis rau hauv lub koob yees duab, thiab koj RTMP kwj tawm mus rau YouTube los yog Facebook;

Qhov no pab pawg video conferencing zoom lub koob yees duab yog sib xws nrog lub qab nthab, phab ntsa mount thiab tripod thiab lwm yam, nws tuaj yeem yooj yim ntes koj cov duab xav tau;

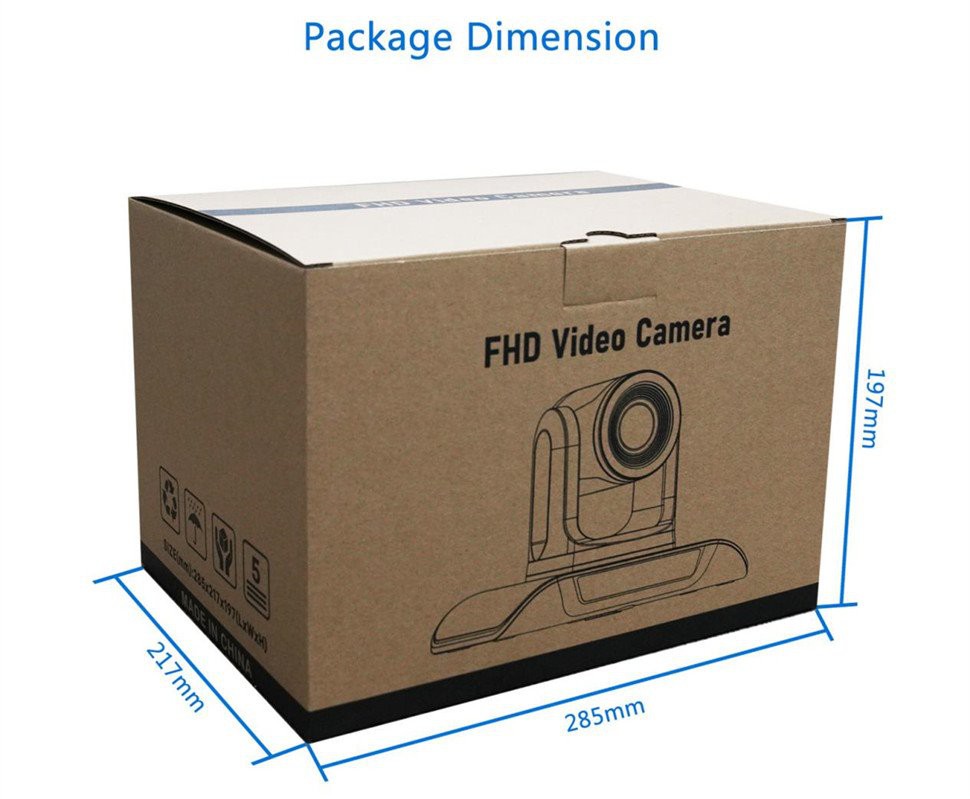

Ntim
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.

Dab tsi hauv lub thawv?

Lub thawv muaj lub koob yees duab HD lub rooj sib tham, USB cable, phab ntsa mount, IR chaw taws teeb tswj, fais fab adapter, tus neeg siv phau ntawv, thiab cov ntsia hlau.



FAQ

Q: Muaj pes tsawg hom khoom koj lub tuam txhab tsim?

A: Tam sim no peb muaj USB ptz koob yees duab, lub koob yees duab lub koob yees duab video sablaj, HDMI / SDI / USB ptz koob yees duab, webcams, video & audio conference kits, thiab microphones.



Q: Koj lub sijhawm them nyiaj yog dab tsi?

A: 30% tso nyiaj them ua ntej ua ntej thiab 70% tshuav nyiaj them ua ntej xa khoom.



Q: Thaum twg kuv tuaj yeem tau txais tus nqi ntawm lub koob yees duab yees duab rau kev sib tham?
A: Feem ntau peb hais hauv 8 teev tom qab peb tau txais koj qhov kev nug.



Q: Txoj kev shipping twg koj tuaj yeem muab tau?

A: Peb tuaj yeem muab kev xa khoom los ntawm hiav txwv, los ntawm huab cua thiab nthuav qhia.



Nrog rau qhov tshwm sim ntawm Internet era, ntau lub tuam txhab tau maj mam pib siv video conferencing rau kev sib txuas lus thiab kev sib koom tes. Yuav kom ua tau raws li qhov kev thov no, peb pab neeg tau pib tsim thiab tsim pab pawg video conferencing lub koob yees duab rau kev muag khoom. Raws li ib qho ntawm cov thawj coj lub rooj sib tham lub koob yees duab manufacturers thiab lwm tus neeg nyob hauv Suav teb, peb tau dhau los ua kev xaiv ntawm ntau thiab ntau lub tuam txhab. Xav paub dab tsi yog qhov zoo ntawm peb cov koob yees duab? Hu rau peb cov neeg ua haujlwm tam sim no kom paub ntau ntxiv thiab tus nqi zoom lub koob yees duab rau chav sib tham!



















Cim npe nrov: Tuam Tshoj teams video conferencing zoom lub koob yees duab manufacturers, lwm tus neeg, Hoobkas
