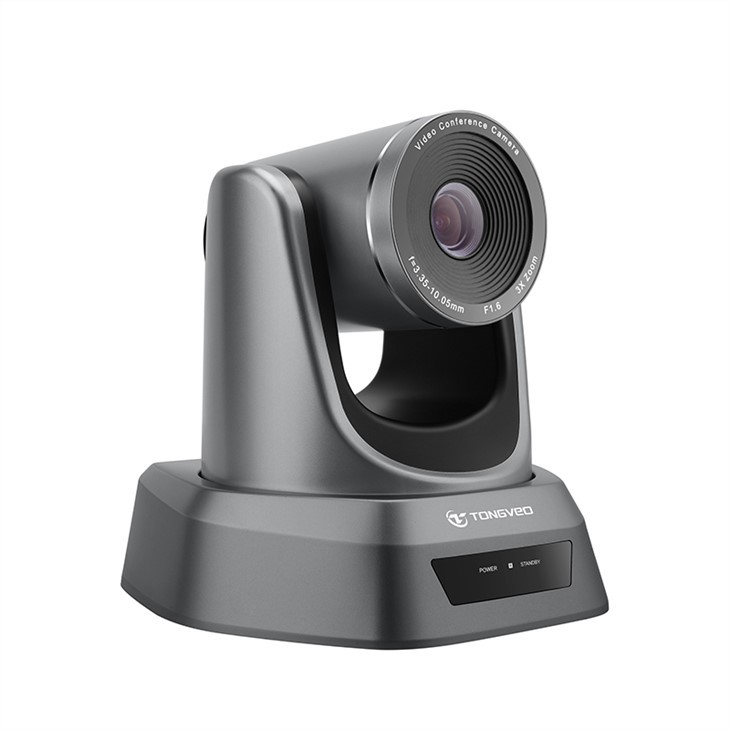

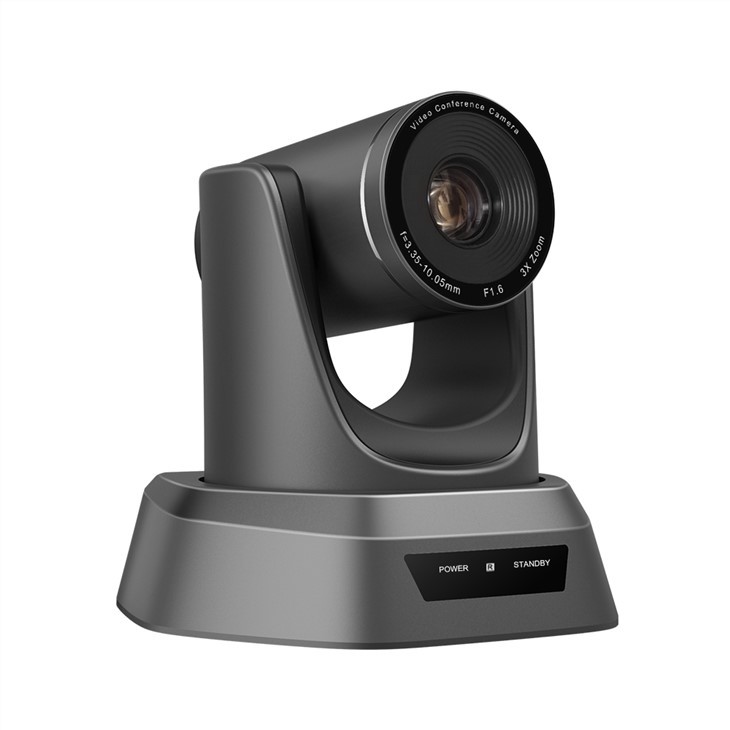

USB ptz conferencing hd koob yees duab rau pawg ntseeg

Khoom Taw Qhia:



USB ptz conferencing hd lub koob yees duab rau lub tsev teev ntuj yog cov khoom siv yees duab tshaj lij rau cov tsev teev ntuj, chav sib tham, tsev kawm ntawv, chaw lag luam, thiab lwm qhov chaw uas xav tau kev sib tham video siab. Nws yog nruab nrog 1080P siab daws teeb meem, uas tuaj yeem muab cov neeg siv nrog cov duab sib tham hauv video meej heev. Tsis tas li ntawd, nws txoj haujlwm PTZ kuj zoo heev. Cov neeg siv tau remotely tswj lub koob yees duab lub kaum sab xis, saib lub kaum sab xis, ua kom pom tseeb, thiab lwm yam kom tua nrog cov teebmeem tshwj xeeb sib txawv. Qhov kev ua haujlwm no yooj yim heev thiab zoo ib yam nrog cov neeg siv cov cwj pwm siv. Nws kuj tuaj yeem ua tau raws li qhov xav tau ntawm cov neeg siv sib txawv rau lub koob yees duab lub kaum sab xis ntawm kev pom.



Nta
High-txhais duab zoo: USB ptz lub rooj sib tham lub koob yees duab yog nruab nrog 1/2.9-inch high-txhais xim CMOS, 2.1-megapixel (16:9) puv HD1080P tso zis daws teeb meem thiab 30 fps siab dynamic duab, yog li daim duab yog heev ntshiab thiab pixel-dawb. Qhov zoo tshaj plaws 3x optical zoom lens cia koj zoom rau ntawm koj qhov kev kawm yam tsis muaj kev cuam tshuam cov duab zoo. Nws muab qhov tshwj xeeb meej meej txawm tias koj tab tom nthuav tawm cov ntaub ntawv nyuaj, cov khoom lag luam, lossis tsom mus rau tus neeg hais lus tshwj xeeb hauv chav sib tham loj.



Lub koob yees duab panoramic: PTZ yees duab lub tsev teev ntuj tuaj yeem tig 350 degrees horizontally thiab 90 degrees vertically. Nws kuj muaj qhov loj ntawm qhov pom ntawm 128 degree, ua kom yooj yim rau kev ua tiav panoramic shooting. Lub kaw lus tswj chaw taws teeb tso cai rau tus neeg siv zaum ntawm ib kawg ntawm chav sib tham thiab yooj yim tig lub koob yees duab los ntawm cov cuab yeej infrared thiab tau txais kev pom zoo dua. Lub koob yees duab panoramic no tseem pab txhawb cov neeg siv los saib xyuas tag nrho lub rooj sib tham hauv lub sijhawm tiag tiag yam tsis muaj cov ntaub ntawv tseem ceeb.



Superior white balance thiab exposure modes: Ib qho ntawm cov teeb meem ntawm kev sib tham hauv video yog cuam tshuam nrog cov teeb pom kev sib txawv. Lub koob yees duab tswj chaw taws teeb rau lub tsev teev ntuj ua txoj haujlwm zoo ntawm kev tswj xyuas qhov zoo tshaj plaws dawb tshuav thiab raug cov qauv. Txawm tias nyob rau hauv cov teeb meem uas tsis muaj teeb meem los yog nyob rau hauv cov chav nrog siab sib piv ntawm lub teeb thiab tsaus, nws kho kom paub tseeb tias koj cov duab nyob twj ywm meej thiab sib npaug.









Qauv	UV 200
Sensor	1/2.9 nti CMOS
Muaj txiaj ntsig pixel	2.1 megapixel
Video system	1080p/30/25, 720p/30/25
Zoom	3 x optical zoom
Lens	f=335-10.05mm
Aperture	F1.6-F3.0
Kab rov tav kaum	99.6 degree (W) -30.6 degree (T)
Lub kaum sab xis	53 0 degree (W) -17.2 degree (T)
Diagonal lub kaum sab xis	129.2 degree (W) -37.6 degree (T)
FOV	128 degree
Video tso zis	USB 2 0
Video daws teeb meem	1080P (1920 * 1080) thiab lwm yam
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	64
Tswj lub davhlau ya nyob twg	RS -232, RS485
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG, YUV
Kab rov tav tig	35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s
Vertical rotation	9 0 degree (± 45 degree) 0.1 degree / s -80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247 * 165 * 170 hli
Khoom hnyav	1.46kg / 2.85kg (net / tag nrho qhov hnyav)



Nws tuaj yeem siv rau kev sib tham hauv video, kev sib tham hauv tsev neeg, kev kawm online, kev sib pauv kho mob thiab kev sib txuas lus;

Tau tshaj feem ntau ntawm cov software tseem ceeb xws li Skype, Microsoft Teams, Google Meet, Cisco, Zoom, BlueJeans, Amazon Chime, GoToMeeting, thiab lwm yam.





Yias: ± 175 degree (Max ceev 80 degree / S);

qaij:-35 degree --+55 degree (Max ceev 60 degree /s);

multi-element 3x lossless optical zoom lens;



Txhawb infrared tswj, RS232 tswj, Web interface tswj, txhawb VISCA, PELCO-D, PELCO-P raws tu qauv, thiab tsis siv neeg Identifiable raws tu qauv;


10 preset ntawm IR chaw taws teeb tswj;

Keyboard maub los (RS232 / RS485); los ntawm txoj kev no, koj tuaj yeem teeb 64 presets;

Tau tshaj Win7/8/10, Mac OSX 10.7 lossis siab dua, thiab Android thiab lwm yam.

Tau tshaj lub qab nthab, phab ntsa mount thiab tripod thiab lwm yam, nws tuaj yeem yooj yim ntes koj cov duab xav tau;

Khoom tsim nyog

Peb daim ntawv pov thawj: CE, FCC, RoHS thiab lwm yam



Xa, nkoj, thiab ua haujlwm

Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; thiab tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;
Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.





Q: Txoj kev shipping twg koj tuaj yeem muab tau?

A: Peb tuaj yeem muab kev xa khoom los ntawm hiav txwv, huab cua, thiab nthuav tawm.



Q: Koj qhov kev pab cuam tom qab muag yog dab tsi?

A: Peb lub sijhawm lav zoo yog ob xyoos. Txhua qhov teeb meem zoo yuav daws tau rau cov neeg siv khoom txaus siab.





Q: Peb tuaj yeem tau txais cov lus hais li cas?

A: Hu rau peb nrog cov lus qhia tshwj xeeb: xws li cov khoom siv, tsim, qhov loj me, cov duab, xim, kom muaj nuj nqis, nto tiav, thiab lwm yam.





Q: Koj puas tuaj yeem pab tus tsim?

A: Yog, Tsuas yog tsim dawb xwb, tsim tshwj xeeb yuav tsum tau them.





Peb muaj ib tus neeg QC nyob rau ntawm cov kab ntau lawm vim kev tshuaj xyuas. Tag nrho cov khoom yuav tsum tau kuaj xyuas ua ntej xa khoom. Peb ua ib qho kev soj ntsuam hauv kab thiab kev soj ntsuam zaum kawg.

1. Tag nrho cov ntaub ntawv raw raug kuaj xyuas thaum lawv tuaj txog ntawm peb lub hoobkas.

2. Txhua daim thiab lub logo thiab tag nrho cov ntsiab lus tau kuaj xyuas thaum tsim khoom.

3. Tag nrho cov ntaub ntawv ntim tau raug tshuaj xyuas thaum lub sijhawm tsim khoom.

4. Tag nrho cov khoom tsim tau zoo thiab ntim tau kuaj xyuas qhov kawg tom qab ua tiav.


Tongveo: Koj tus khub customization
Tongveo tsis yog tsuas yog cov chaw tsim khoom thiab cov chaw muag khoom ntawm HD conferencing system koob yees duab tab sis kuj yog koj tus khub hauv kev nrhiav kev daws teeb meem zoo tshaj plaws video conferencing. Peb nkag siab tias txhua lub koom haum muaj qhov tshwj xeeb thiab muaj kev xav tau thiab kev xav tau sib txawv. Tias yog vim li cas peb muab cov kev pab cuam customization rau tailor peb cov khoom rau koj specifications. Txawm hais tias koj xav tau cov yam ntxwv tshwj xeeb, kev tsim khoom lag luam, lossis kev koom ua ke nrog lwm lub tshuab, Tongveo tuaj yeem ua haujlwm nrog koj los tsim lub koob yees duab sib tham zoo tshaj plaws.



Cim npe nrov: USB ptz conferencing hd koob yees duab rau tsev teev ntuj, Tuam Tshoj USB ptz conferencing hd koob yees duab rau tsev teev ntuj manufacturers, lwm tus neeg, Hoobkas
