lauj kaub qaij zoom video koob yees duab rau lub rooj sib tham loj chav hu

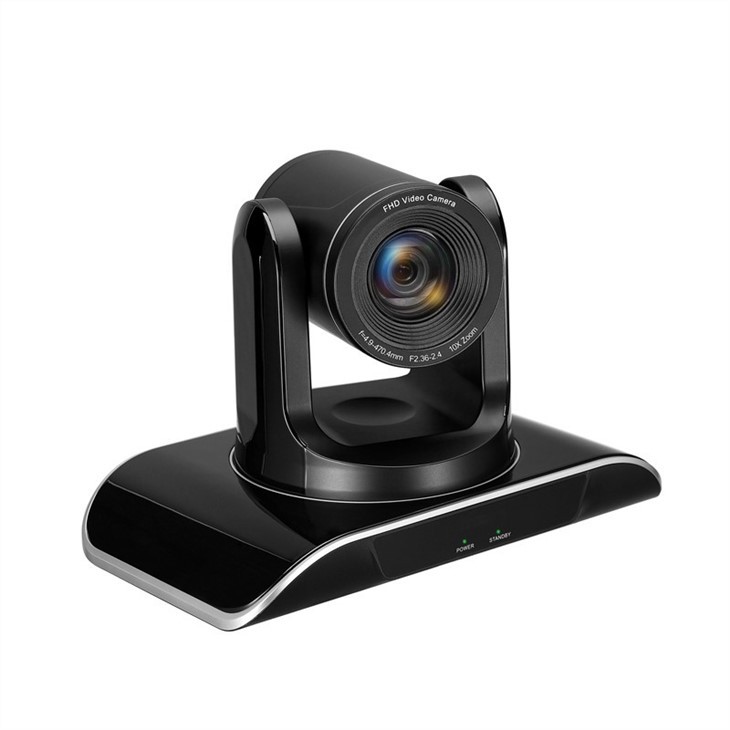

Product Overview:

VC300 yias qaij zoom yees duab yees rau lub rooj sib tham loj hauv chav hu tuaj yeem muab tag nrho HD 1080p duab zoo thiab tso tawm cov duab zoo nkauj ntawm 30 fps vim nws tau nruab nrog 1/2.8 '' CMOS sensor. Rau kev sib tham hauv video, kev kawm hauv online, kev sib txuas lus, kev kawm online, kev sib tham hauv tsev neeg, kev sib txuas lus kho mob thiab ntau yam kev xav tau, nws tuaj yeem ua kom pom tseeb thiab muaj tseeb ntawm cov duab zoo. Tib lub sijhawm, nws cov chaw taws teeb tswj IR txhawb nqa 10 txoj haujlwm ua ntej, VISCA txhawb 64 txoj haujlwm ua ntej, thiab PELCO txhawb 255 txoj haujlwm ua ntej. Qhov no txhais tau hais tias lub lauj kaub qaij zoom lub koob yees duab lub rooj sib tham yog yooj yim heev rau kev khiav lag luam thiab lub kaum sab xis kom haum rau tag nrho chav sib tham. Raws li kev sib raug zoo muaj zog, nws tuaj yeem hloov kho rau txhua qhov tseem ceeb video software ntawm kev ua lag luam, xws li Skype, Microsoft Teams, Cisco, thiab Zoom. Txawm hais tias koj tab tom muaj kev sib tham hauv tsev lossis nrog koj pab neeg ua haujlwm, lub koob yees duab tv mounted video sablaj lub koob yees duab tuaj yeem ua kom lub rooj sib tham ua tiav thiab ua haujlwm zoo.







Khoom feature thiab daim ntawv thov

1. Ntau yam
Lub yias qaij zoom lub koob yees duab yees duab rau lub rooj sib tham loj hauv chav hu txhawb ntau lub kaum sab xis tig thiab 10x optical zoom muaj nuj nqi, yog li nws tuaj yeem ua tau raws li qhov xav tau ntawm ntau qhov xwm txheej.



2. Chaw taws teeb tswj
Los ntawm kev tswj cov chaw taws teeb infrared, lub koob yees duab yees duab no rau chav sib tham loj tuaj yeem tswj tau qhov kev ua kom pom tseeb lossis kev sib hloov, yog li cov neeg siv tuaj yeem txuag tau ntau lub sijhawm thiab tsom mus rau kev nthuav qhia cov ntsiab lus ntawm lub rooj sib tham.



3. Siab txhais
Raws li Sony cov duab zoo sensor, lub yias qaij zoom video sablaj lub koob yees duab tuaj yeem muab cov neeg tuaj koom lub rooj sib tham nrog 1080P cov duab tso tawm, thiab cov ntsiab lus thiab xim ntawm daim duab yuav muaj tseeb heev.



4. Yooj yim rau nruab
Lub koob yees duab lub koob yees duab lub rooj sib tham no tuaj yeem ntsia tau yooj yim hauv txhua txoj haujlwm raws li nws los nrog cov neeg siv hauv paus. Txawm hais tias muab tso rau ntawm lub rooj lossis mounted ntawm lub qab nthab, koj tuaj yeem ua tiav tag nrho cov txheej txheem sai.



5.Wide daim ntawv thov
Ntxiv nrog rau kev siv los ua kom tiav lub koob yees duab lub rooj sib tham, lub koob yees duab no kuj tseem siv tau rau hauv kev kho mob ua qauv qhia, kev qhia tej thaj chaw deb thiab lwm yam haujlwm uas yuav tsum tau muaj cov duab zoo. Ntxiv mus, nws muaj ib tug USB interface thiab yog heev adaptable.











Cov lus qhia ntau lawm

Yias qaij zoom video koob yees duab rau lub rooj sib tham loj chav hu txhawb kab rov tav tig lub kaum sab xis yog: -180 degree ~ +180 degree, ntsug tig lub kaum sab xis yog: -90 degree ~ +90 degree ;

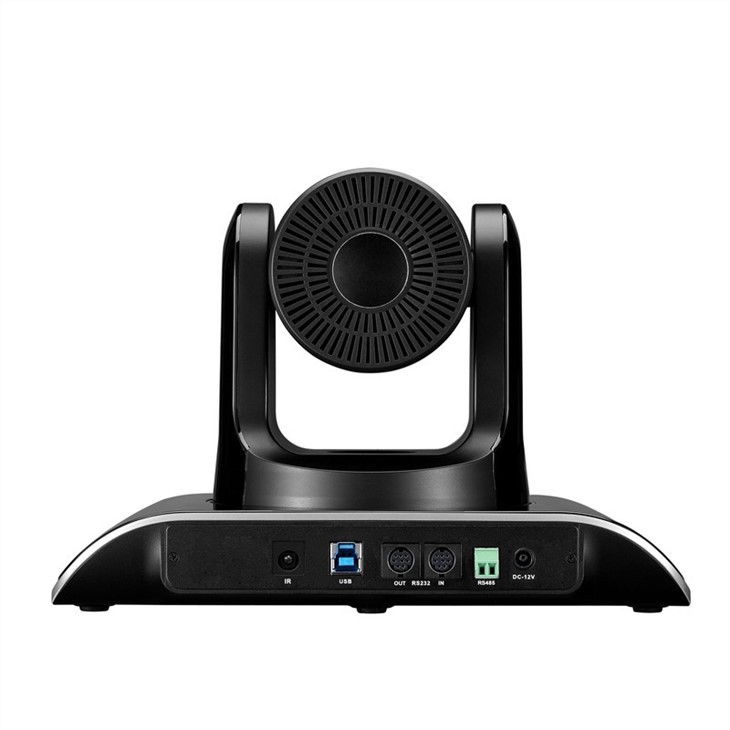

Txhawb infrared tswj, RS232, RJ45 interface, txhawb VISCA, PELCO-D, PELCO-P raws tu qauv, thiab tsis siv neeg Identifiable raws tu qauv;

Preset txoj hauj lwm:IR chaw taws teeb txhawb 10 presets, VISCA kev them nyiaj yug 64 presets, PELCO txhawb 255 presets;

USB Plug & ua si, leej twg tuaj yeem teeb tsa lub koob yees duab USB no yooj yim thiab tswj kev sib tham thiab nws ruaj khov dua, thiab hloov cov ntaub ntawv sai dua, yog li koj tuaj yeem tau txais cov txiaj ntsig video zoo dua;

Tau tshaj lub qab nthab, phab ntsa mount thiab tripod thiab lwm yam, nws tuaj yeem yooj yim ntes koj cov duab xav tau;

Khoom tsim nyog

Peb daim ntawv pov thawj: CE, FCC, RoHS thiab lwm yam



Xa, nkoj thiab pab

Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;
Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.

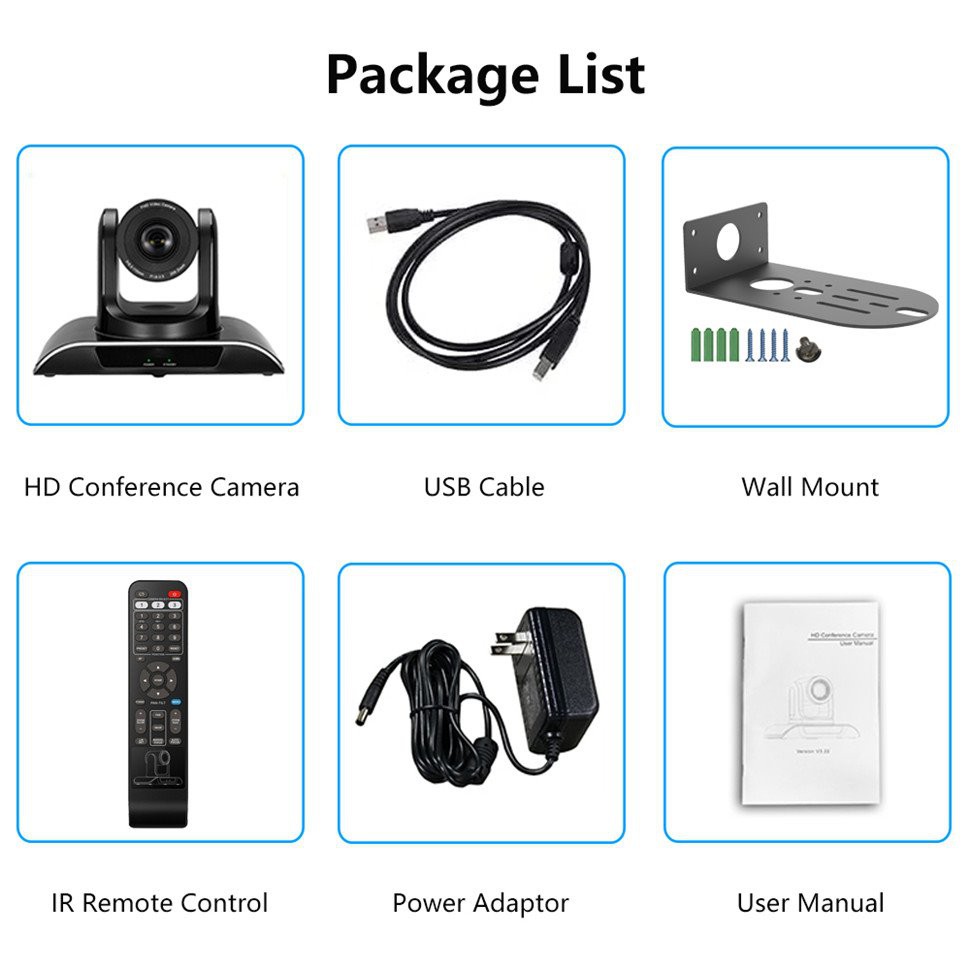

Dab tsi hauv lub thawv?

Cov pob suav nrog 10x zoom HD lub rooj sib tham lub koob yees duab, USB cables, IR chaw taws teeb, Fais fab adapter, Phab ntsa mount & screws thiab cov neeg siv phau ntawv.





Khoom Parameter

Qauv	VC 300
Sensor	1/2.9 nti CMOS
Muaj txiaj ntsig pixel	2.1 mega pixel daws teeb meem
Video system	1080p-30/25, 720p-30/25
Zoom	10 x optical zoom
Lens	f=49-47.04mm
Aperture	F2.36~2.4
FOV	6 9,7de
Video tso zis	USB 2 0
Video daws teeb meem	1080P (1920 * 1080) thiab lwm yam
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	64
Tswj lub davhlau ya nyob twg	RS -232, RS485
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG, YUV
Kab rov tav tig	36 0 degree (± 180 degree) 0.1 degree /s -100 degree /s
Vertical rotation	18 0 degree (± 90 degree) 0.1 degree / s -80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247 * 165 * 170 hli
Khoom hnyav	1.15kg / 1.95kg (net / tag nrho qhov hnyav)



FAQ

Q: Koj puas yog cov chaw tsim khoom lossis tuam txhab lag luam?

A: Peb yog cov chaw tsim khoom thiab kev lag luam ua ke.

Q: Koj puas tuaj yeem tsim lub tv mounted video sablaj lub koob yees duab raws li peb xav tau?
A: Yog, OEM muaj. Peb muaj ib pab neeg tshaj lij los ua txhua yam uas koj xav tau los ntawm peb.

Q: Cov qauv puas muaj?
A: Yog lawm, peb muab cov qauv dawb rau koj los kuaj xyuas qhov zoo ib zaug paub tseeb tom qab 1 ~ 2 hnub.



Q: Koj puas tuaj yeem muaj luv nqi yog tias kuv muaj kev txiav txim loj?
A: Yog, peb tuaj yeem muab cov luv nqi sib txawv raws li koj qhov kev txiav txim kom muaj nuj nqis.



Q: Lub teb twg yog koj cov khoom siv rau?

A: Peb lub koob yees duab yees duab rau chav sib tham loj yog dav siv rau kev sib tham, kev kawm online, pawg ntseeg, telemedicine thiab lwm yam.





Rau kev nthuav qhia thiab kev sib txuas lus zoo dua, nws tau dhau los ua ib qho kev tsis tuaj yeem siv cov cuab yeej yees duab zoo hauv ntau lub rooj sib tham video. Yog li ntawd, peb tsim ntau hom lauj kaub qaij zoom video sablaj lub koob yees duab kev muag khoom. Peb lub tuam txhab muaj ntau tus kws tshaj lij hauv daim teb no thiab cov kws tshaj lij uas tuaj yeem pab koj tsim thiab tsim cov koob yees duab ntawm ntau yam tshwj xeeb. Yog tias txaus siab, tuaj tam sim no kom tau txais tus nqi zoo tshaj ntawm tv mounted video sablaj lub koob yees duab!















Cim npe nrov: yias qaij zoom video koob yees duab rau lub rooj sib tham loj chav hu, Tuam Tshoj yias qaij zoom video koob yees duab rau loj lub rooj sib tham hu manufacturers, lwm tus neeg, Hoobkas
