360 Wide Angle IP Lub Koob Yees Duab rau Pab Pawg Zoom Lub Rooj Sib Tham

Khoom Taw Qhia

Teams lub rooj sib tham chav lub koob yees duab tau dhau los ua ib yam khoom tseem ceeb hauv lub neej ua haujlwm tsis khoom. Nws yog tshwj xeeb tsim los rau kev sib tham video thiab teleconferencing. Nws tuaj yeem sau cov ntsiab lus ntawm lub rooj sib tham thiab cov tswvcuab cov kev xav nrog cov duab siab thiab cov txiaj ntsig kev sib txuas ruaj khov, uas yuav pab txhawb kev sib cuag ntawm cov pab pawg. Ib yam yog qhov tseeb ntawm no 360 wide-angle IP lub koob yees duab rau pawg zoom lub rooj sib tham, uas tuaj yeem taug qab cov neeg hauv chav sib tham thiab paub txog kev ua haujlwm autofocus, yog li txhim kho kev ua tau zoo thiab kev sib txuas lus video zoo. Nws tsis siv neeg taug qab thiab lwm yam haujlwm tuaj yeem ntes cov ntsiab lus thiab cov kev hloov pauv ntawm cov tswv cuab kev ua, yog li cov neeg hauv chav sib tham tuaj yeem txav mus los tau ywj pheej, ua rau txhua tus tswvcuab tsom mus rau cov ntsiab lus ntawm lub rooj sib tham.



Nta

1. HD Auto Tracking: 360 Wide Angle IP Lub Koob Yees Duab rau Pab Pawg Zoom Lub Rooj Sib Tham yog cov cuab yeej ntse heev. Nws pib taug qab thiab paub txog lub ntsej muag thev naus laus zis tso cai rau lub koob yees duab pom tus neeg hais lus thiab kho nws lub kaum sab xis thiab zoom raws li (20x optical zoom), ua kom tus neeg hais lus nyob hauv nruab nrab ntawm tus ncej. Cov yam ntxwv no pab tshem tawm qhov xav tau ntawm kev hloov kho ntawm phau ntawv, txuag lub sijhawm thiab ua kom lub rooj sib tham ua tau zoo.



2. Cov yees duab thiab suab zoo: Lub koob yees duab tau nruab nrog lub siab zoo CMOS sensor uas muab 1080p HD daws teeb meem. Nws muaj peev xwm ntes cov duab meej thiab ntuj nyob rau hauv cov teeb pom kev tsis zoo (HDR ntawm 30 fps). Ntxiv rau, lub microphone built-in ntes cov suab zoo kom cov neeg tuaj koom tuaj yeem hnov ​​​​ib leeg kom pom tseeb, txawm nyob hauv qhov chaw nrov nrov.



3. Yooj yim rau nruab thiab siv tus phooj ywg: Nws yog ib qho yooj yim rau nruab thiab siv tau yooj yim. Nws tuaj yeem ntsia tau rau ntawm lub tripod lossis ib qho chaw tiaj tus. Cov chaw taws teeb tso cai rau cov neeg siv kho lub kaum sab xis thiab zoom, nrog rau tig lub koob yees duab rau thiab tawm. Lub koob yees duab tseem tuaj yeem tswj tau ntawm lub app mobile, tso cai rau cov neeg siv los khiav lub koob yees duab los ntawm txhua qhov chaw.



4. Cov qauv nplua nuj: Raws li tus neeg muag khoom ntawm cov koob yees duab no, peb kuj muaj cov qauv zoo tshaj plaws ntawm cov koob yees duab rau kev muag khoom, xws li 360 degree video conference camera, wide angle camera for zoom meeting, ip camera zoom meetingand li ntawm. Lawv tuaj yeem suav nrog cov yam ntxwv xws li kev paub lub ntsej muag thiab lub suab nrhiav kom ua tiav qhov kev ua tau zoo dua.



Khoom Parameter

Qauv	TSI 800
Sensor	1/2.9 nti CMOS
Muaj txiaj ntsig pixel	2.38 mega pixel daws teeb meem
Video system	1080p-30/25, 720p-30/25
Zoom	20x optical zoom
Lens	f=5 5-110 hli
Aperture	F1.6-3.5
Lub kaum sab xis	58.6 degree (W) -3.6 degree (T)
Diagonal	60.2 degree (W) -3.7 degree (T)
FOV	55,5 degree
Video tso zis	USB, HDMI, SDI, RJ45
Video daws teeb meem	1080P (1920 * 1080) thiab lwm yam
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	64
Tswj lub davhlau ya nyob twg	RS -232, RS485
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG, YUV
Kab rov tav tig	35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s
Vertical rotation	18 0 degree (± 90 degree) 0.1 degree / s -80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247 * 165 * 170 hli
Khoom hnyav	1.46kg / 2.85kg (net / tag nrho qhov hnyav)



Daim ntawv thov khoom

Auto-tracking video conferencing lub koob yees duab tuaj yeem siv rau kev sib tham video, chav kawm online, nyob streaming, telemedicine, pawg ntseeg thiab lub tsev hais plaub digital;

Nws yog sib xws nrog feem ntau ntawm cov software tseem ceeb xws li Skype, Microsoft Teams, Google Ntsib, Cisco, Zoom, Webex, thiab lwm yam.





Cov lus qhia ntau lawm

55.5 degree dav pom lub kaum ntse ntse tsis cuam tshuam;

Txhawb kab rov tav lub kaum sab xis yog: -175 degree ~ +175 degree, ntsug tig lub kaum sab xis yog: -90 degree ~ +90 degree ;

Txhawb infrared tswj, RS232 tswj, RJ45 web tswj, thiab lwm yam.

Preset txoj hauj lwm

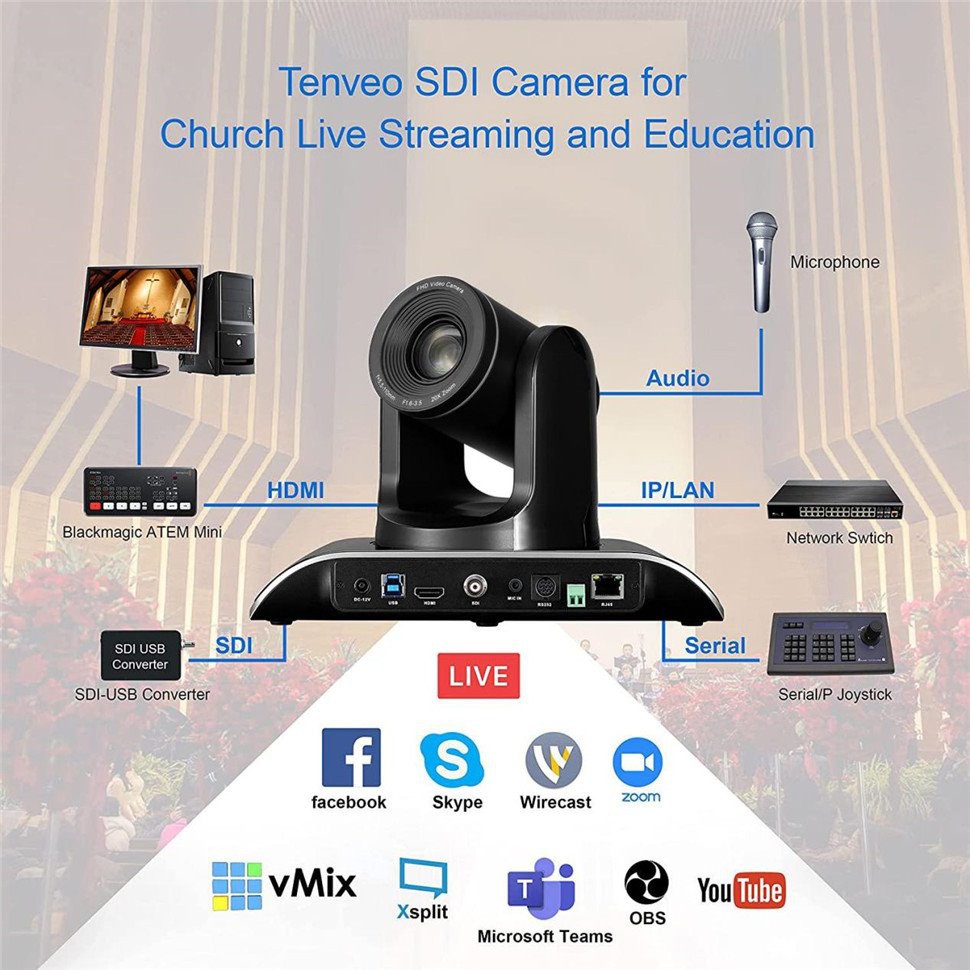

USB, SDI, HDMI, IP streaming; nws muaj peev xwm ib txhij tso zis max 1080P @ 30fps video los ntawm USB, SDI, HDMI thiab IP streaming;

hloov tau yooj yim installation



Khoom tsim nyog

Peb daim ntawv pov thawj: CE, FCC, RoHS thiab lwm yam



Xa, nkoj, thiab ua haujlwm



Dab tsi hauv lub thawv?

Cov pob suav nrog HD lub koob yees duab sib tham, USB cable, fais fab adapter, IR chaw taws teeb tswj, phab ntsa mount thiab cov neeg siv phau ntawv.



FAQ

Q: Koj muaj lub koob yees duab zoo li cas?

A: USB qauv, HDMI / USB / SDI / IP video rooj sib tham lub koob yees duab, video conferencing lub koob yees duab nqi; peb muaj 1080p / 4k tsau lub koob yees duab, thiab 3x / 10x / 12x / 20x / 30x xaiv.



Q: Yuav tiv tauj, sib tham thiab koom tes nrog TONGVEO li cas?

A: Ua siab zoo hu rau TONGVEO pab pawg thoob ntiaj teb los ntawm Email, Xov Tooj, thiab lwm txoj kev sib txuas lus zoo.



Q: Peb puas tuaj yeem luam peb lub logo?

A: Yog lawm, peb muab kev pabcuam OEM.



Q: Koj puas muab tus qauv?

A: Yog lawm, peb muab cov qauv coj mus kuaj thiab tus nqi coj mus kuaj yuav rov qab rau koj thaum lees paub qhov kev txiav txim.



Q: Cov nqe lus them nqi yog dab tsi?

A: 30% T / T them ua ntej, 70% ua ntej xa khoom xa tuaj; los yog L/C thaum pom.

Paypal lossis West Union kuj lees txais.
