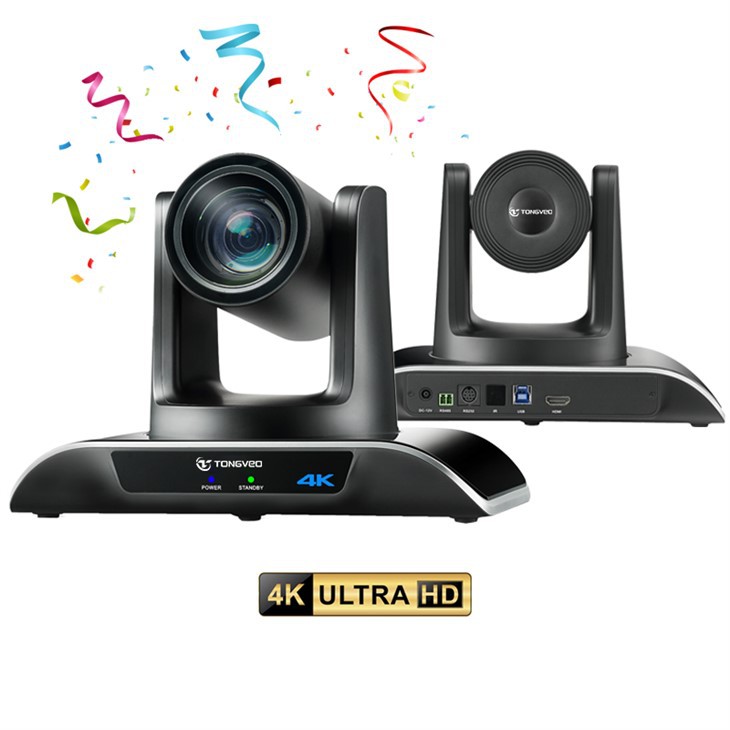

USB 3.0 Video Conference Camera
Ultra HD 4k conferencing lub koob yees duab nrog 8.29 megapixels
5x digital zoom nrog super wide --120 degree FOV

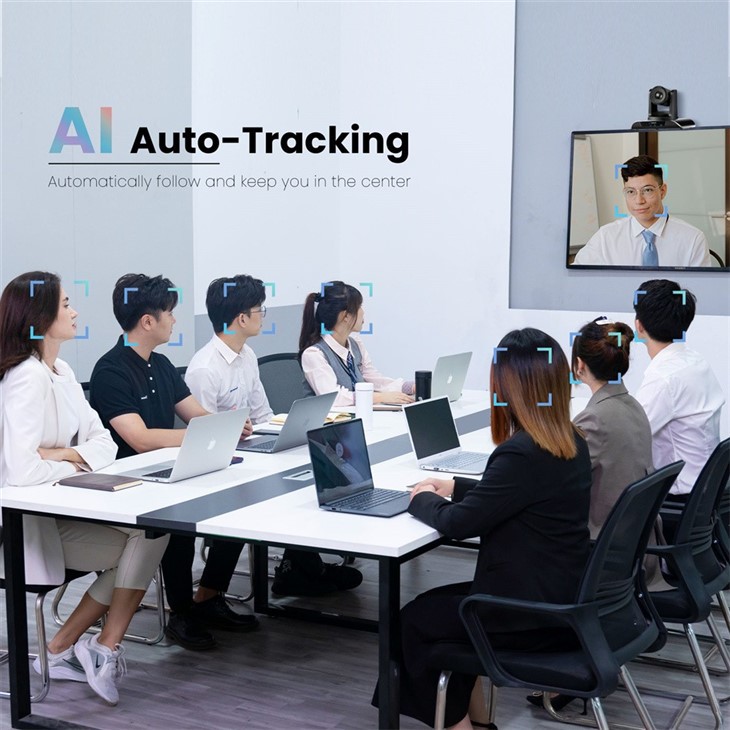

AI-powered auto-tracking nrog taw kev tswj
4K USB video conference koob yees duab
4k ptz lub koob yees duab
Hauj lwm lawm
Khoom Taw Qhia
Qhov no VC100A 4k 4k lub koob yees duab sib tham, siv los ntawm kev txawj ntse nrhiav cov algorithm, tuaj yeem kaw rau ntawm tus neeg thiab ua raws nraim thiab meej. Lub 4K USB video sablaj lub koob yees duab AI nws pib taug qab muaj nuj nqi yog ignited thiab tswj los ntawm 6 gestures. Lub koob yees duab kuj tau nruab nrog 120-degree wide field of view thiab 5x digital zoom, uas ua rau nws muaj peev xwm ntes txhua yam uas tus neeg siv xav tau.
Khoom Parameter
|
Qauv |
TV-VC100A |
|
Sensor |
SONY IMX415 |
|
Muaj txiaj ntsig pixel |
8.29 mega pixel ib |
|
Video system |
4K @ 30/25fps, 2K @ 30/25fps, 1080p @ 30/25fps |
|
Zoom |
5x digital zoom |
|
Lens |
f=2.22 hli |
|
Aperture |
F1.8 |
|
FOV |
120 degree |
|
Video tso zis |
USB 3 0 |
|
Video daws teeb meem |
4K (3840 * 2160) thiab lwm yam |
|
Teeb liab txheem |
NTSC/PAL |
|
Preset txoj hauj lwm |
Tus neeg siv tuaj yeem teeb tsa txog 255 presets (10 presets los ntawm IR chaw taws teeb) |
|
Tswj lub davhlau ya nyob twg |
RS-232 (input nkaus xwb), RS-485, USB |
|
Shutter |
1/30s -1/10000s, auto |
|
Baud tus nqi |
2400/4800/9600/38400bps |
|
Tswj raws tu qauv |
VISCA, PELCO-D, PELCO-P (RS-232, RS-485) |
|
USB raws tu qauv |
UVC 1.1 |
|
Yam tsawg kawg Illumination |
0.1Lux |
|
SNR |
Ntau dua lossis sib npaug li 50dB |
|
Video encoding hom ntawv |
H.264, H.265, MJPG, YUY2 |
|
Kab rov tav tig |
350 degree (± 175 degree) 0.1 degree /s{4}} degree /s |
|
Vertical rotation |
180 degree (± 90 degree) 0.1 degree /s-80 degree s |
|
Fais fab mov |
DC 12V / 2A |
|
Kev siv fais fab |
12W |
|
Ua haujlwm kub |
0 degree ~ +50 degree |
|
Ua haujlwm av noo |
0 ~ 95% RH |
|
Khoom loj |
247.1 * 152 * 169.6 hli |
|
Khoom hnyav |
1.37kg / 2.45kg (net / tag nrho qhov hnyav) |
Daim ntawv thov khoom
Lub 4k conferencing auto-tracking ptz lub koob yees duab no tuaj yeem siv rau kev siv tshuaj kho mob, kev sib tham video, kev kawm online, nyob streaming thiab video hauv tsev.
Lub USB3.
Cov lus qhia ntau lawm
Nruab nrog lub siab txhais 4K duab sensor, lub koob yees duab ptz no muaj peev xwm ntawm qhov siab tshaj plaws 4K / 30fps duab daws teeb meem, thiab kev sib kis ntev ntawm kev tshaj lij tshaj tawm cov yeeb yaj kiab hauv ntau hom encoding, xws li H.264, H.265, MJPG, YUY2.
Lub koob yees duab 4k ptz nrog 5x digital zoom tuaj yeem tswj tau yooj yim rau cov ntsiab lus tsom mus sai nrog 10 presets ntawm IR chaw taws teeb tswj, 255 ntawm PELCO, thiab 64 ntawm VISCA.
Lub koob yees duab kev sib tham tej thaj chaw deb nrog cov yias siab heev & qaij mechanism tuaj yeem tig 350 degree horizontally (± 175 degree) thiab 180 degree vertically (± 90 degree) ntsiag to thiab smoothly.
Lub koob yees duab ultra HD 4k no, nrog lub kaum sab xis dav ntawm 120 degree kev pom, tuaj yeem nqa tag nrho cov neeg koom. Nws yog qhov zoo tshaj plaws rau cov xwm txheej uas koj xav tau kom haum ntau tus neeg hauv lub thav duab.

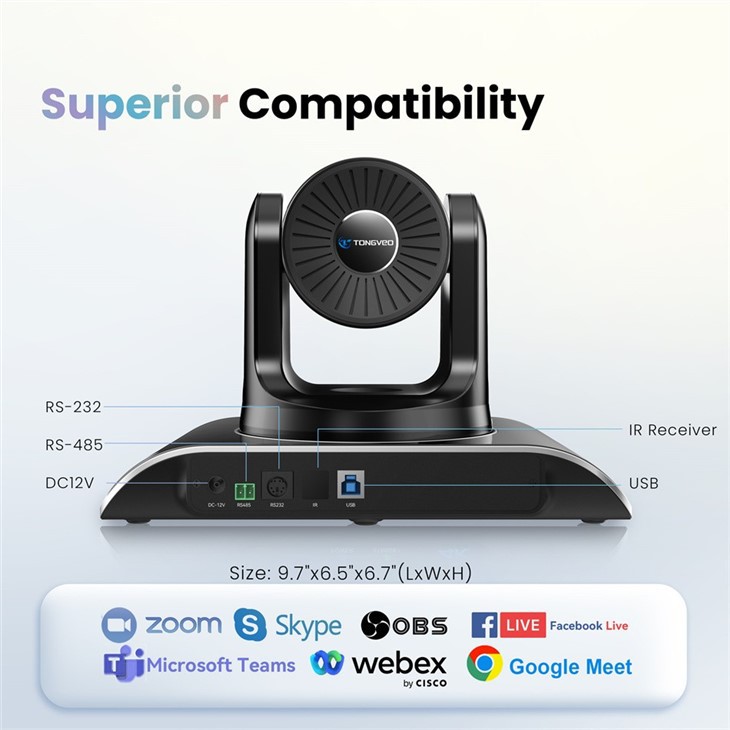

Txuas lub koob yees duab ultra HD ptz no los ntawm USB3.0 rau koj lub PC/Tablet thiab pib lub rooj sib tham video. Tsis tas yuav tsav tsheb ntxiv. Nws paub txog cov duab xa mus thiab PTZ tswj ib txhij ntawm USB cable, thiab lav kev ruaj ntseg ntawm kev ua haujlwm.

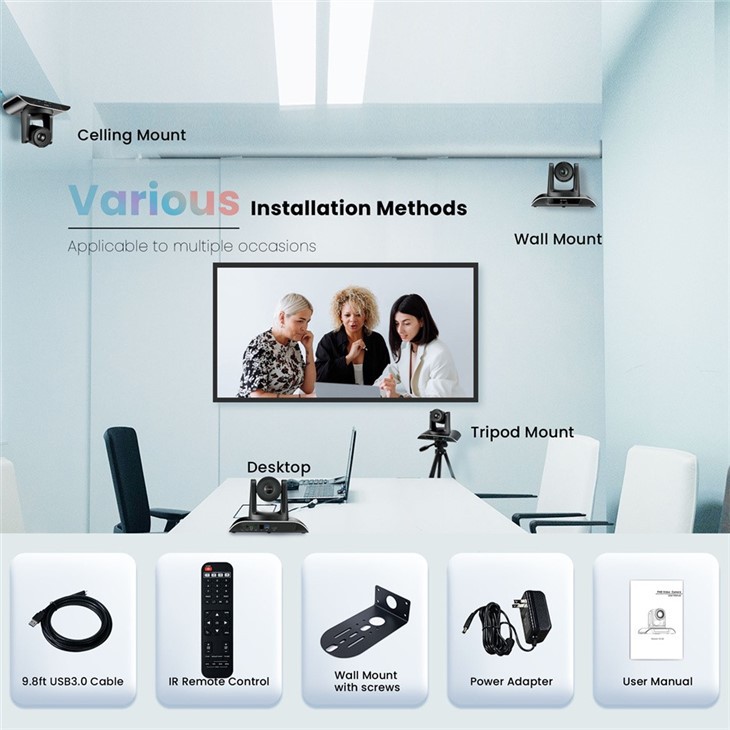

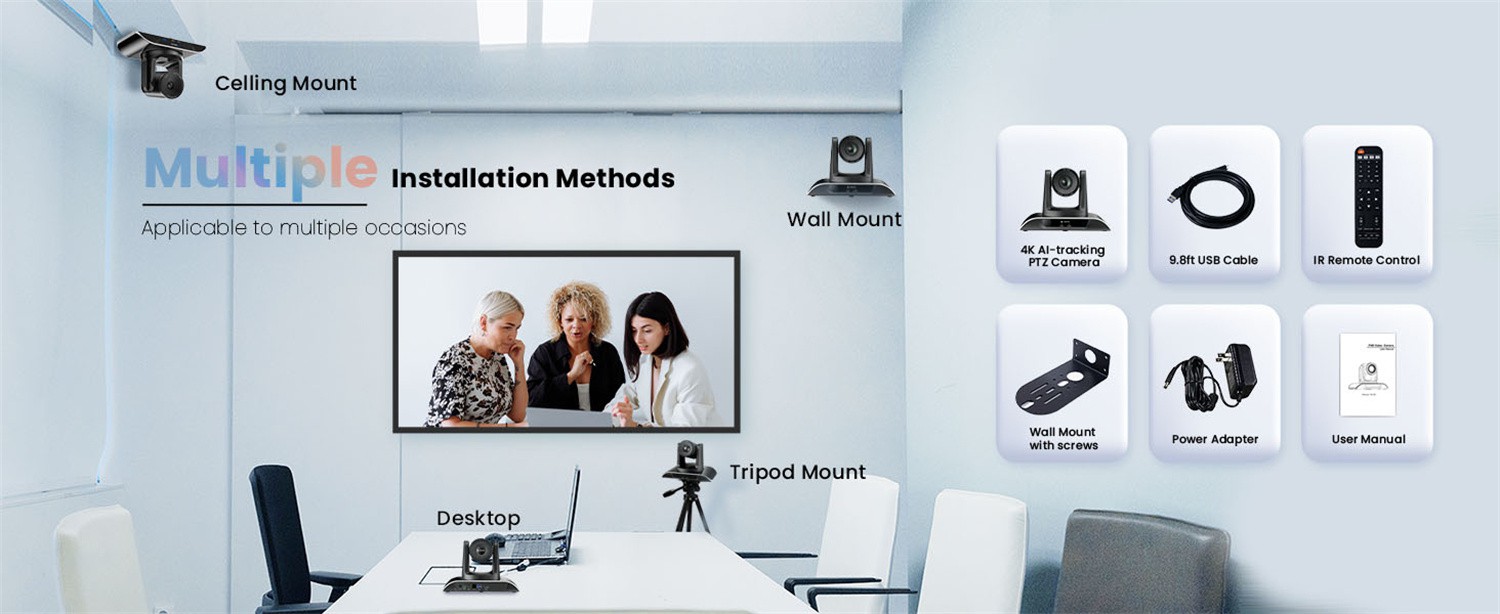

Lub koob yees duab pib taug qab ptz no txhawb nqa qab nthab, phab ntsa mount, tripod, thiab lwm yam. Nws tuaj yeem yooj yim ntes koj cov duab xav tau.
Khoom tsim nyog
Peb daim ntawv pov thawj:CE, FCC, RoHS thiab lwm yam
Xa, shipping thiab pab
Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;
Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.
Dab tsi hauv lub thawv:
Lub koob yees duab, DC 12V fais fab adaptor, IR chaw taws teeb tswj, phau ntawv, USB 2.0 cable, qab nthab brackets thiab cov ntsia hlau.
FAQ
Q: Koj lub Hoobkas nyob qhov twg?
A: Tongveo nyob hauv Shenzhen, Suav.
Q: Thaum twg koj lub Hoobkas tsim?
A: Txij xyoo 2013.
Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom tshwj xeeb hauv USB ptz koob yees duab, HDMI / SDI / USB ptz koob yees duab, webcams, video & audio conference kits, thiab microphones.
Q: Peb puas tuaj yeem siv peb lub logo?
A: Yog lawm, peb tuaj yeem luam koj tus kheej lub logo raws li koj qhov kev thov.
Q: Koj muaj pes tsawg lub ntim?
A: Peb muaj ib pob khoom txheem.
Cim npe nrov: usb 3.
