Lub Rooj Sib Tham Lub Koob Yees Duab Rau TV
USB 3.0 ptz koob yees duab;
20x optical zoom
lub rooj sib tham hu lub koob yees duab rau tv;
Nrog 61 degree ntau qhov chaw saib;
Ntau cov duab cov ntsiab lus tsis poob zoo;
Hauj lwm lawm
Khoom Taw Qhia
Lub Tongveo VL20N(NDI) NDI chaw ua haujlwm lub rooj sib tham lub koob yees duab, nrog 20x optical zoom, eqiuipped nrog qhov tseeb NDI/HX, SDK, PoE, USB 3.0, IMX327 1/2.8" CMOS Sony Sensor, 1080P Full HD daws teeb meem.Nws muab cov yeeb yaj kiab ntse, xim zoo nkauj, thiab qhov tshwj xeeb kho qhov muag raug, ua-hauv AI thev naus laus zis ua kom pom kev sib npaug ntawm lub ntsej muag kom pom tseeb lub ntsej muag thiab ua rau lub ntsej muag zoo nkauj txawm tias nyob hauv qhov tsaus ntuj lossis teeb pom kev zoo.
Khoom Parameter
|
Qauv |
VL20N (NDI) |
|
Sensor |
Sony IMX{0}}/2.8" CMOS |
|
Muaj txiaj ntsig pixel |
2.07 MP |
|
Video system |
1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps, 640 * 480P @ 30fps, 320 * 240P @ 30fps; YUY2 / NV12 / H.264 / H.265 / MJPG) |
|
Zoom |
20x optical zoom |
|
Lens |
f=5 5-110 hli |
|
Aperture |
F1.6-3.5 |
|
Diagonal Lub kaum sab xis |
61 degree (W) -3.64 degree (T) |
|
Video tso zis |
USB 3.0, HDMI |
|
Kev them nyiaj yug Backlight |
Txhawb nqa |
|
SNR |
>50dB ib |
|
Digital Noise Reduction |
2D & 3D Noise txo |
|
Teeb liab txheem |
NTSC/PAL |
|
I / O interface |
|
|
Video Interfaces |
HDMI, HOM-C, RJ45 |
|
Video Compression Format |
H.264, H.265, MJPG, YUY2 |
|
LAN |
10M / 100M adaptive Ethernet chaw nres nkoj; Txhawb POE IEEE 802.3af |
|
Network raws tu qauv |
NDI|HX2, RTSP, RTMP, ONVIF, GB28181; Txhawb VISCA Tshaj IP |
|
Tswj raws tu qauv |
VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
|
Tswj raws tu qauv |
UVC 1.1 |
|
Yam tsawg kawg Illumination |
VISCA/Pelco-D/Pelco-P; Baud tus nqi: 38400/9600/4800/2400 |
|
Tswj interface |
Ntau dua lossis sib npaug rau RS232 (tsuas yog cov tswv yim), RS485, TYPE-C (UVC1.1), RJ45 |
|
PTZ Parameter |
|
|
Pan / Tilt Rotation |
± 175 degree, -90 degree -+90 degree |
|
Pan Control Ceev |
0 1 -80 degree /sec |
|
Tilt Control Ceev |
0 1 -60 degree /sec |
|
Preset Number |
Tus neeg siv tuaj yeem teeb tsa txog 255 presets (10 presets los ntawm IR chaw taws teeb) |
|
Kev Ua Haujlwm Systems |
Windows 7, Windows 8.1, Windows 10, Windows 11; Android, Mac OS™ 10.10 lossis siab dua, Linux (Yuav tsum tau txhawb UVC.) |
Khoom feature thiab daim ntawv thov
VL20N NDI chaw ua haujlwm lub rooj sib tham lub koob yees duab tuaj yeem siv rau kev sib tham video, lub tsev teev ntuj nyob streaming, cov npoj yaig qhia, kev kho mob, pawg ntseeg thiab lub tsev hais plaub digital; Tau tshaj feem ntau video thiab suab software;
Cov lus qhia ntau lawm

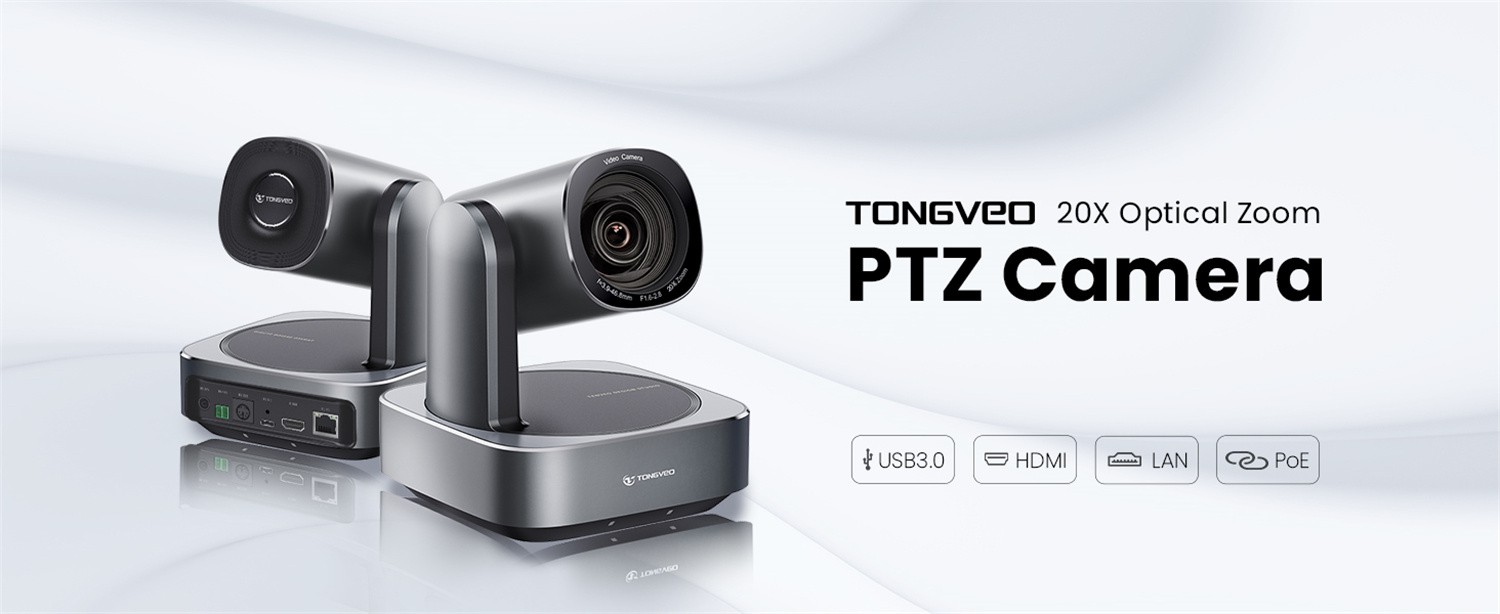

20X Zoom HDMI PTZ koob yees duab

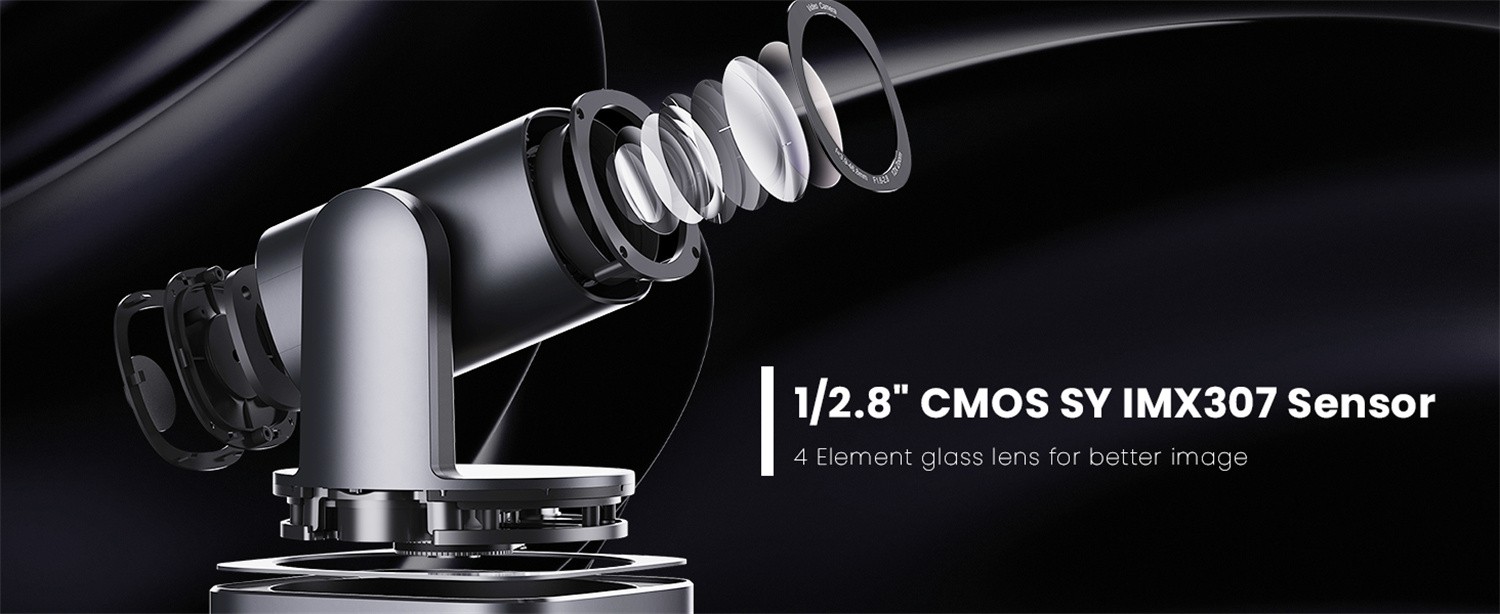

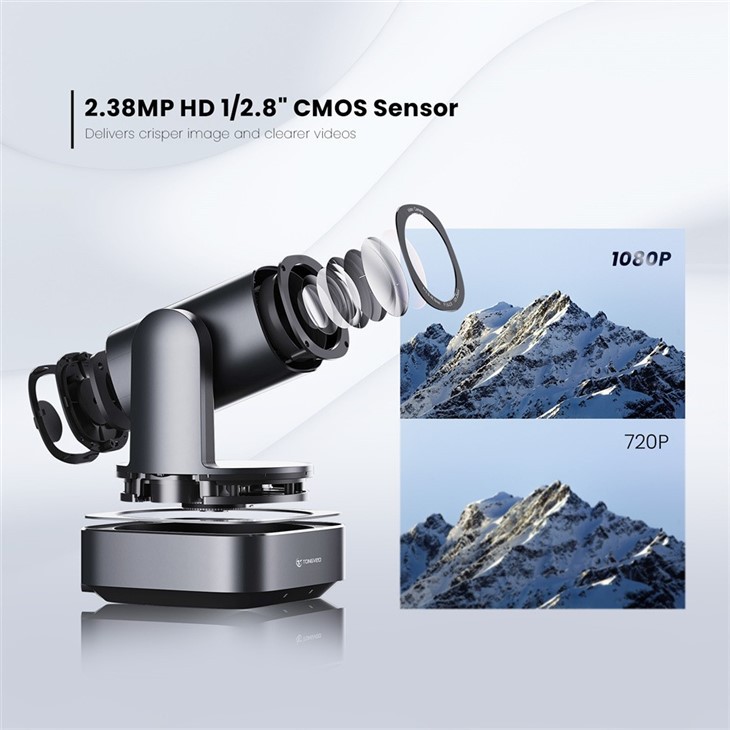

Vl20N NDI chaw ua haujlwm lub rooj sib tham lub koob yees duab siv 1/2.8 "HD CMOS sensor, zoo pixels txog 2.38 megapixels, siab daws teeb meem txog 1920 × 1080, Muaj tseeb rau Lub Neej Xim thiab cov duab zoo nkauj, 1080P video signals mus txog 60pfs, nthuav qhia meej thiab tiag HD video, 20X Optical Zoom nrog 61 degree kev pom, Qhov tseeb thiab ruaj khov autofocus. 20XZoom nyob streaming lub koob yees duab yog tsim rau lub Koom Txoos, Kev pehawm, Kev Sib Tham, Txheej xwm, Kev Qhia Online, Kev Ua Si, Tsev Kho Mob, Tshaj Tawm Tshaj Tawm, Studio streaming.
High SNR CMOS sensor tuaj yeem txo cov suab nrov zoo hauv qab lub teeb qis. 2D & 3D suab nrov txo algorithms kuj tau siv los txo cov duab suab nrov heev. Txawm tias nyob rau hauv lub teeb ultra-tsawg, daim duab tseem huv thiab meej, thiab Video S / N yog ntau dua lossis sib npaug li 55dB.

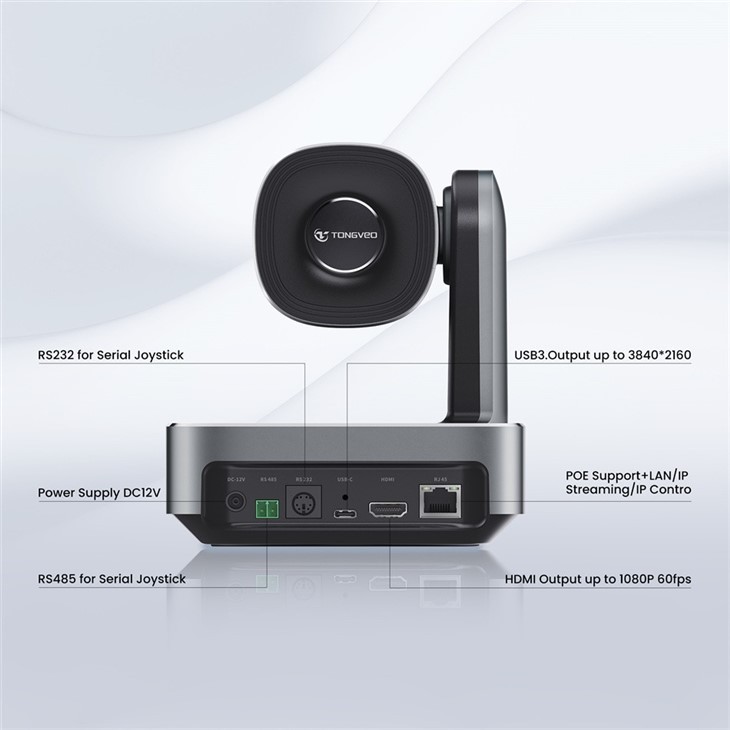

HDMI + USB + LAN Outputs
Peb lub Rooj Sib Tham Chav Lub Koob Yees Duab muaj USB HDMI, thiab IP video tso tawm, uas tuaj yeem tso tawm ib txhij 1080p video ntawm 60fps los ntawm HDMI, USB thiab IP streaming, kev sib kis tau zoo txog 328ft ntawm Ethernet, Txhawb PoE (Power dhau Ethernet), koj xav tau PoE Hloov mus txuas, Video Compression Format: YUV, MJPEG, H.264 thiab H.265.the PTZ lub koob yees duab tuaj yeem nyob streaming ntawm OBS, Vmix, Facebook, Youtube, Tau tshaj Skype, Temas, google Hangouts, GoToMeeting conferencing Software
IP LIVE streaming
HD Video streaming ncaj qha mus los ntawm RTSP, RTMP(S), thiab SRT mus rau hauv online streaming kev pab cuam, koj tuaj yeem ruaj ntseg kis tau tus yees duab nrog tsawg latency, lub PTZ lub koob yees duab muaj zog, tswj kev ncaj ncees thiab zoo ntawm video thiab tswj tag nrho ntawm ib tug Ethernet cable. (POE 802.3af), Txhawb H.265/H.264 encoding (LAN), uas ua rau daim duab zoo dua thiab meej nyob rau hauv qis bandwidth, Koj tuaj yeem siv zog, tswj, teeb tsa thiab saib ua ntej lub webcam no dhau ib zaug Ethernet Cat5/6 kab.
Smooth thiab High-speed PTZ Control
Lub koob yees duab muaj lub ntsej muag zoo nkauj, kab rov tav tig (-175 degree rau +175 degree ) thiab ntsug rotation (-90 degree rau 90 degree), ntau txoj kev tswj xws li suav nrog IR chaw taws teeb tswj , lossis siv RS232 thiab RS485 serial ports (serial joystick). 10 presets ntawm IR chaw taws teeb tswj, 255 presets ntawm VISCA / Pelco-D / Pelco-P, thiab ua raws li TCP / IP, RTSP, RTMP, GB28181 thiab lwm yam kev cai network, tuaj yeem txhawb nqa kev ua haujlwm siab tshaj ntawm kev nyob streaming.
Lub koob yees duab tau sib xws nrog OBS thiab txhawb nqa tag nrho kev tswj hwm los ntawm VISCA Serial raws tu qauv. Txawm li cas los xij, thov nco ntsoov tias kev tswj hwm los ntawm VISCA TCP lossis VISCA UDP yuav raug txwv ib feem. Thaum lub koob yees duab ua haujlwm nrog Bitfocus / Khub, thov nco ntsoov tias tam sim no muaj cov kev txwv ntawm lub preset muaj nuj nqi.
Tau tshaj feem ntau ntawm Video thiab suab lub rooj sib tham, xws li Skype, MS Teams, Google ntsib, Webex, Vmix, Zoom, Youtube thiab Facebook;
Khoom tsim nyog
Peb daim ntawv pov thawj:CE, FCC, RoHS thiab lwm yam
Xa, shipping thiab pab
Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;
Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.

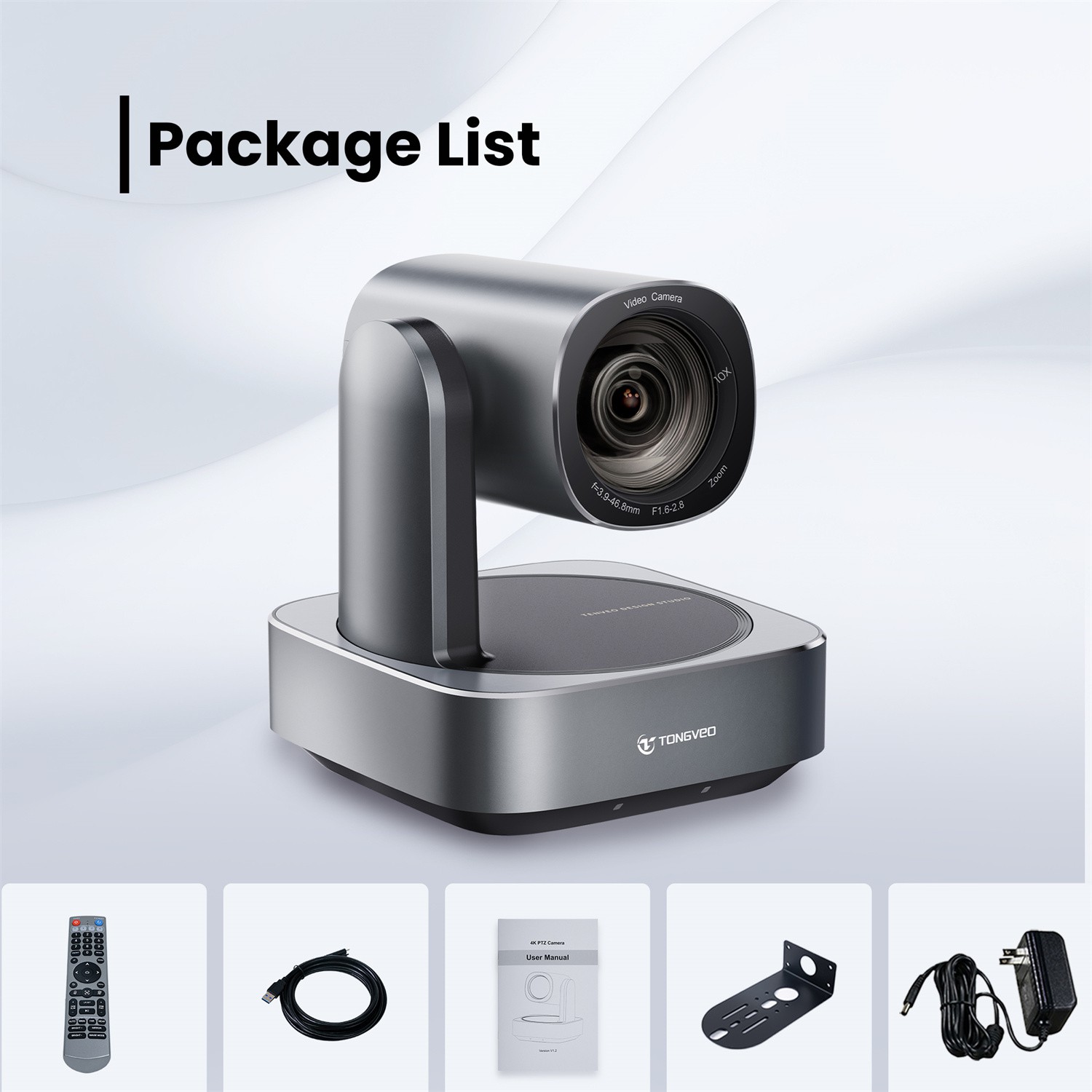

Dab tsi hauv lub thawv?
Lub thawv txheem suav nrog 1 pcs lub koob yees duab, IR chaw taws teeb, USB cable, phab ntsa mount, fais fab adapter, thiab tus neeg siv tus qauv;
FAQ
Q: Koj puas yog tuam txhab lag luam lossis chaw tsim khoom?
A: Peb yog cov chaw tsim khoom tshwj xeeb hauv USB ptz koob yees duab, HDMI / SDI / USB / NDI ptz koob yees duab thiab nws pib taug qab ptz koob yees duab, webcams, yees duab & lub rooj sib tham cov khoom siv, thiab microphones.
Q: Daim ntawv them nqi twg koj tuaj yeem txais?
A: T / T, Western Union, PayPal thiab lwm yam. Peb lees txais txhua lub sijhawm them nyiaj yooj yim thiab nrawm.
Q: Koj muaj daim ntawv pov thawj twg?
A: CE, FCC, ROHS.
Q: Koj qhov kev pabcuam shipping yog dab tsi?
A: Peb tuaj yeem muab kev pabcuam rau nkoj nkoj, kev sib sau khoom, kev tshaj tawm kev lis kev cai, kev npaj cov ntaub ntawv thauj khoom thiab xa khoom ntau ntawm qhov chaw nres nkoj shipping.
Q: Daim ntawv them nqi twg koj tuaj yeem txais?
A: T / T, Western Union, PayPal thiab lwm yam. Peb lees txais txhua lub sijhawm them nyiaj yooj yim thiab nrawm.
