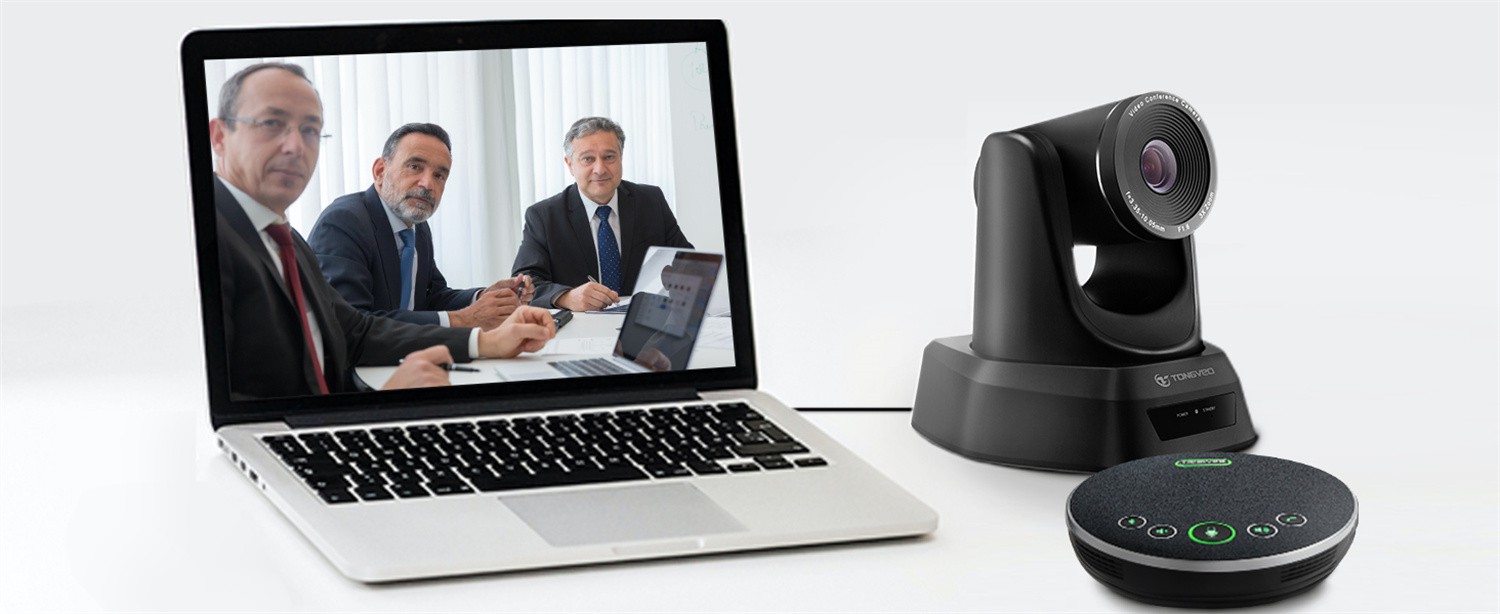

Tag Nrho Hauv Ib Lub Suab Video Conference Room System



Lub TV-UV200 ptz lub koob yees duab thiab M3-B Bluetooth hais lus tag nrho hauv ib qho kev sib tham video, uas suav nrog 3x optical zoom ptz lub koob yees duab, thiab Bluetooth speakerphone.

Lub koob yees duab nruab nrog 1/2.8 "SONY CMOS sensor nrog 2.38 megapixels, tuaj yeem xa cov ntsiab lus siab 1080p@60fps cov yeeb yaj kiab nrog rau qhov dav ntawm qhov pom. Txaus siab rau qhov ceev ceev PTZ txav thiab ua tau zoo ntawm USB3. 0 kev sib txuas nrog NV-U series koob yees duab.

TV-M3-B yog lub rooj sib tham Bluetooth hais lus nrog 360 degree omnidirectional lub suab tuaj tos thiab tuaj yeem nqa 5 meters vojvoog, USB ntsaws thiab ua si. Tag nrho hauv ib qho kev sib tham video zoo dua rau chav sib tham me me thiab huddle.







Lub koob yees duab qauv	TV-UV 200
Sensor	1/2.8 "SONY CMOS
Muaj txiaj ntsig pixel	2.38 mega pixel daws teeb meem
Video system	1080p @ 60/50/30/25fps, 720p @ 60/50/30/25fps
Zoom	3 x optical zoom
Lens	f=2 38-7 hli
Aperture	F1.96-3.64
Kab rov tav kaum	103.69 degree (W) -42.12 degree (T)
Lub kaum sab xis	67.14 degree (W) -24.87 degree (T)
Diagonal lub kaum sab xis	113.91 degree (W) -47.55 degree (T)
Video tso zis	USB 3.0 (Wireless version muaj.)
Video daws teeb meem	1080P (1920 * 1080) thiab lwm yam
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	Tus neeg siv tuaj yeem teeb tsa txog 255 presets (10 presets los ntawm IR chaw taws teeb)
Tswj lub davhlau ya nyob twg	RS -232, RS485
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG, YUV
Kab rov tav tig	35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s
Vertical rotation	180 degree (± 90 degree) 0.1 degree /s-80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247 * 165 * 170 hli
Microphone qauv	TV-M3-B
Bluetooth	BT5. 0
Roj teeb	2400mAH (Ua-hauv lithium roj teeb) Lub sij hawm suab paj nruag (txog 8 teev) Roj teeb lub neej (hu) txog 6 teev. Charge lub sij hawm mus txog 3 teev
Hom kev sib txuas	USB/Bluetooth/AUX
Chav rooj sib tham loj	15-30㎡
Ntsib nrog	3-12 cov neeg tuaj koom
Pickup range	5 meters (16.4 ko taw)
Mics	2 x Professional Mics Array
Hom microphone	Omni-directional (360 degree tuaj tos ntau)
Microphone rhiab heev	-29dBFS
Txo suab nrov	Yog lawm
Full duplex audio	Yog lawm
AEC	Yog lawm
Ntau zaus	100Hz txog 22kHz
Hais lus	5W / 95dB
Interface	1 x Type-C, 1 x 3.5mm audio port
Cov kev xav tau ntawm qhov system	Windows 7/8/10 lossis siab dua, MacOS 10.7 lossis siab dua, Chrome OS V29.01547 lossis siab dua





3x zoom tag nrho hauv ib qho kev sib tham video hauv lub rooj sib tham webcam nrog lub microphone thiab tus hais lus tuaj yeem siv rau cov npoj yaig cov lus qhuab qhia, xov tooj cua, nyob streaming, kev sib tham video, kev kawm online thiab video hauv tsev.





Lub TV-UV200 ptz lub koob yees duab thiab M3-B Bluetooth hais lus tag nrho hauv ib qho kev sib tham video yog sib xws nrog feem ntau ntawm cov software tseem ceeb xws li Skype, Microsoft Teams, Google Meet, Cisco Webex, Zoom, BlueJeans, Amazon Chime, GoToMeeting thiab lwm yam.



All-in-1 video thiab audio conferencing daws teeb meem

Qhov tshwj xeeb ntawm TONGVEO lub rooj sib tham chav lub koob yees duab system, muaj HD 1080p PTZ lub koob yees duab thiab Bluetooth tham lus, All-in-one tsim coj kev tshaj lij video conferencing rau txhua qhov chaw sib tham, Bluetooth speakerphone thiab HD lub koob yees duab lub rooj sib tham tuaj yeem ua haujlwm ib txwm ua, pom, ua. hnov thiab hais lus tib lub sij hawm, siv ua ke kom tau raws li lub rooj sib tham video thiab suab zoo heev, video rooj sab laj system zoo tagnrho rau chav sib tham me me rau nruab nrab;







Full HD Video thiab Suab

3X kho qhov muag zoom kev tshaj lij PTZ lub koob yees duab rau chav sib tham, Cov iav Lens, Txais 1/2.8 ''SONY CMOS nrog 2.38 Mega pixel txhim kho cov duab sensor, muab 1920 * 1080p siab txhais cov duab thiab cov yeeb yaj kiab, txhawb nqa kab rov tav 350 degree, ntsug tig 180 degree , thiab 113 degree qhov dav ntawm qhov pom uas tsis muaj kev cuam tshuam video, xa cov duab daws teeb meem zoo nkauj, Thaum lub full-duplex microphone array nrog echo tshem tawm tuaj tos cov suab thiab xa cov suab ntshiab hauv 16.4ft.





Great & Smooth Conference Experience

Lub rooj sib tham Bluetooth no Speakerphone nrog lub microphone tuaj yeem pab tsom mus rau lub rooj sib tham, khaws lub suab nyob deb 5M (16.4ft), Nws siv lub microphone tsis muaj tes thiab txhais tes tsis pub hais lus tsim, txuas nrog USB, Bluetooth5.0, Dongle, tsis muaj neeg tsav tsheb xav tau, ua-nyob rau hauv 2400mAh roj teeb, lub neej ntev yuav ua tau 6-8 kev ua hauj lwm tas mus li, nws yog haum rau lub rooj sib tham chav ntawm 40 square meters thiab nyob lub rooj sib tham nrog 8-12 neeg;





Yooj yim teeb tsa video conferencing

Tua tawm cov rooj sib tham video nrog lub plug-and-play USB 2.0 kev txuas rau koj lub laptop, desktop, computer, lossis Smart TV. thiab tom qab ntawd koj tuaj yeem pib nws tam sim ntawd thiab khiav nws ntawm video conferencing software, leej twg tuaj yeem teeb tsa USB lub koob yees duab no yooj yim thiab tswj kev sib tham video lossis nyob streaming.widely siv ntawm kev hu xov tooj, video sablaj, chav kawm online, Tele-Medicine, kev cob qhia chaw taws teeb. , kev xam phaj nyob deb, thiab lwm yam





Ultra Compatibility 3 Xyoo Tom qab-muag Warranty

Lub koob yees duab USB lub rooj sib tham video no thiab Bluetooth Lub Rooj Sib Tham Tham ua haujlwm nrog feem ntau cov kev sib tham video nrog rau Zoom, Skype rau Kev Lag Luam, Polycom, Microsoft Lync, Cisco, WebEx, BlueJeans, Facebook Messenger, thiab ntau dua. Txhawb Windows 7, Windows 8.1, Windows 10, Mac OS 10.10 lossis siab dua. Qhov kev sib tham video koob yees duab no los nrog 3 xyoo lav, thiab peb muab 30 hnub nyiaj rov qab, txhua lo lus nug yuav teb tsis pub dhau 24 teev







Peb daim ntawv pov thawj:CE, FCC, RoHS thiab lwm yam





Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Rau kev yuav khoom, peb yuav xa tuaj tsis pub dhau 3-7 hnub ua haujlwm;


Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.



Dab tsi hauv lub thawv?

TV-UV200 ptz lub koob yees duab thiab M3-B Bluetooth hais lus tag nrho hauv ib lub rooj sib tham video nrog 3x zoom ptz lub koob yees duab thiab M3B Bluetooth microphone, thiab tag nrho cov khoom siv cuam tshuam.





Q: Koj lub Hoobkas nyob qhov twg?

A: Hauv Shenzhen, Suav.

Q: Koj puas tuaj yeem ua OEM thiab ODM?

A: Yog, OEM thiab ODM yog ob qho tib si txais. Qhov yooj yim kom muaj nuj nqis peb yuav qhia tom qab peb sib tham.

Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv 8 teev tom qab peb tau txais koj qhov kev nug.

Q: Koj tus MOQ yog dab tsi?

A: Yog tias peb muaj cov khoom hauv Tshuag, nws yuav tsis muaj MOQ. Yog tias peb xav tau tsim, peb tuaj yeem tham txog MOQ raws li tus neeg siv khoom qhov xwm txheej.

Q: Txoj kev them nyiaj yog dab tsi?

A: 1) TT lossis Western Union rau kev txiav txim

2) ODM, OEM xaj, 30% tso nyiaj, 70% T / T ua ntej xa khoom.



Cim npe nrov: tag nrho nyob rau hauv ib lub rooj sib tham video chav tsev, Tuam Tshoj tag nrho nyob rau hauv ib lub rooj sib tham video chav system manufactures, lwm tus neeg, Hoobkas
