HD pc rooj sib tham system ptz koob yees duab





Raws li cov chaw tsim khoom tsom mus rau lub koob yees duab kev sib tham, peb HD PC lub rooj sib tham system ptz lub koob yees duab yog lub rooj sib tham tshiab daws teeb meem uas tuaj yeem muab cov yeeb yaj kiab siab txog 1080p, qhia txog cov duab tiag tiag thaum lub rooj sib tham. Advanced digital image processing thev naus laus zis tuaj yeem txo cov suab nrov thiab txhim kho qhov sib txawv, ua rau cov duab pom tseeb thiab pom tseeb dua. Nyob rau tib lub sijhawm, nws kuj muaj cov haujlwm xws li auto-focus thiab auto-exposure, uas tuaj yeem hloov kho daim duab nyob rau hauv cov teeb pom kev sib txawv kom ntseeg tau tias cov duab zoo. Qhov kev tshaj lij video conferencing no ua rau nws nyiam cov cuab yeej rau kev lag luam niaj hnub kev sib txuas lus thiab kev sib koom tes, muab kev yooj yim zoo rau cov rooj sib tham hauv cheeb tsam, kev cob qhia chaw taws teeb, kev sab laj kev kho mob, thiab lwm yam.



Nta
1. Cov teebmeem pom tseeb tshwj xeeb: Lub koob yees duab lub rooj sib tham tau nruab nrog 1/2.9-inch CMOS, cov cuab yeej ua haujlwm siab tshaj plaws, thiab 20x zoom muaj nuj nqi, uas tuaj yeem muab 2.1 megapixels thiab puv HD 1080p tso zis daws teeb meem thiab 30 fps siab dynamic range duab. Yog li ntawd, cov neeg tuaj koom lub rooj sib tham tuaj yeem siv zog khaws txhua yam ntsiab lus thaum sib tham, ua kom muaj kev sib txuas lus zoo thiab sib qhia cov ntaub ntawv.



2. Saj zawg zog saib tag nrho: HD lub rooj sib tham system lub koob yees duab txhawb nqa 350-degree kab rov tav tig thiab 90-degree ntsug qaij. Nrog rau 55.5 degree kev pom, nws tuaj yeem npog txhua lub ces kaum ntawm chav sib tham. Cov neeg siv tuaj yeem hloov kho lub koob yees duab lub kaum ntse ntse los tsim kom muaj lub rooj sib tham zoo dua qub. Tus du, nyob ntsiag to, thiab meej lauj kaub / qaij muab kev sib tham zoo siab.

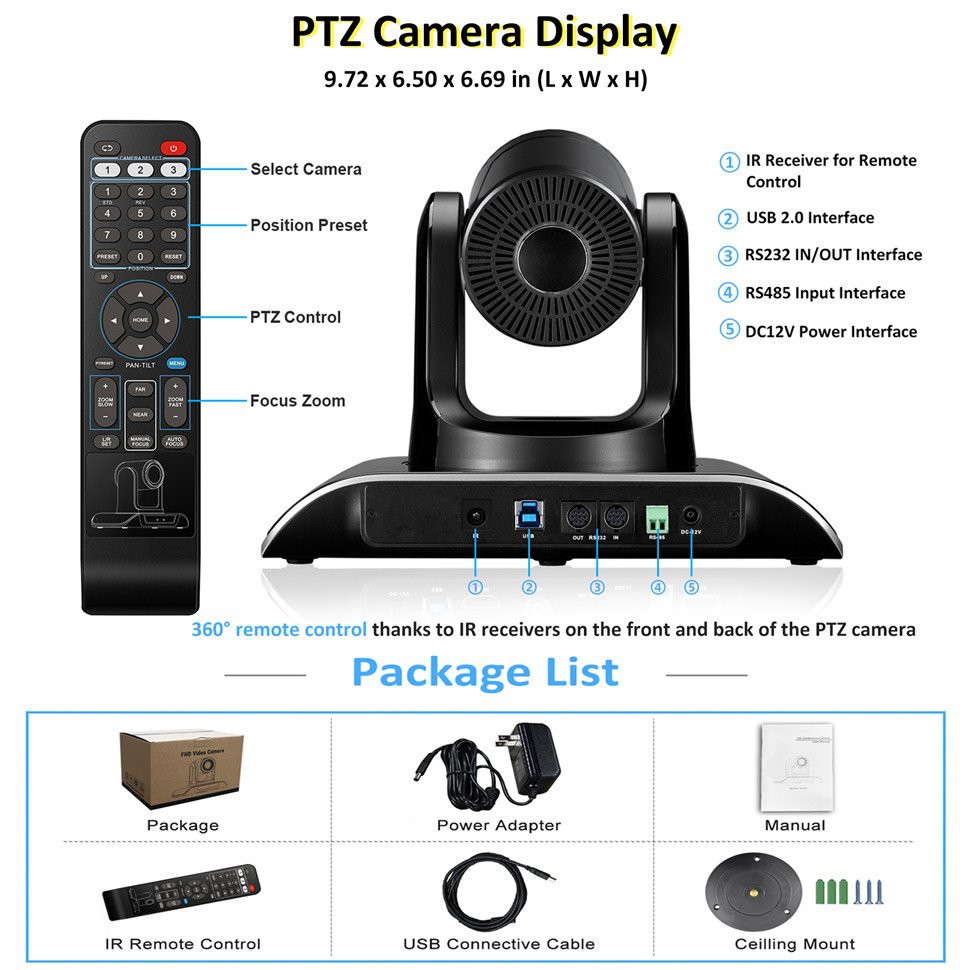

3. Ib-kauj ruam USB kev twb kev txuas: Cov cuab yeej muaj ib tug neeg siv-phooj ywg USB 2.0 interface, yog li tsis tas yuav muaj ib tug complex txheej txheem. Tsuas yog ntsaws lub cuab yeej rau hauv lub computer lossis lwm lub davhlau ya nyob twg, thiab cov neeg siv tuaj yeem pib hu xov tooj zoo video tam sim thiab ua yeeb yaj kiab xa mus.



4. Kev hloov kho cov duab ntse: Autofocus thiab white balance functions xyuas kom meej tias lub koob yees duab sablaj yog qhov tseeb thiab raug. Txawm hais tias muaj kev hloov pauv hauv lub rooj sib tham ib puag ncig, lub koob yees duab ptz blackmagic tau hloov kho kom muab qhov pom kev zoo tshaj plaws.



5. Kev tswj kom yooj yim: Cov chaw taws teeb tswj infrared thiab lwm yam cuab yeej tso cai rau cov neeg siv tau yooj yim kho qhov chaw ntawm ntau chav sib tham PTZ koob yees duab yam tsis tau tawm hauv lawv lub rooj kom ua tiav cov haujlwm ntawm tus kheej. Cov chaw taws teeb tswj infrared muaj 10 txoj haujlwm preset thiab cov keyboard controller muaj 64 presets, ua kom yooj yim dua thiab hloov tau los kho lub rooj sib tham lub kaum sab xis.



Daim ntawv thov
Kev koom tes hauv kev lag luam: Hauv kev lag luam, peb lub rooj sib tham PC lub koob yees duab kev muag khoom txhawb nqa kev sib koom tes ntawm kev sib koom tes thiab kev ua haujlwm nyob deb.
Kev cob qhia nyob deb: Cov tsev kawm ntawv muaj peev xwm muab kev cob qhia cov chaw taws teeb zoo los ntawm cov cuab yeej no.
Kev Sib Tham Txog Kev Kho Mob: Cov kws kho mob tuaj yeem siv lub cuab yeej rau kev sib tham nyob deb thiab kev sib qhia paub.
Kev sib txuas lus hauv pab pawg: Cov pab pawg sib txawv ntawm thaj chaw tuaj yeem siv lub cuab yeej sib txuas lus hauv lub sijhawm, ua kom muaj kev sib koom tes zoo dua.





Khoom Parameter

Qauv	VC 500
Sensor	1/2.9 nti CMOS
Muaj txiaj ntsig pixel	2.1 megapixel
Video system	1080p-30/25, 720p-30/25
Zoom	10 x optical zoom
Lens	f =5.85 ~ 93.6 hli
Aperture	F1.8-F3.9
FOV	55,5 degree
Video tso zis	USB 2 0
Video daws teeb meem	1080P (1920 * 1080) thiab lwm yam
Teeb liab txheem	NTSC/PAL
Preset txoj hauj lwm	10 los ntawm IR chaw taws teeb tswj;
Tswj lub davhlau ya nyob twg	RS -232, RS485
Shutter	1/30s -1/10000s, auto
Baud tus nqi	38400/9600bps
Tswj raws tu qauv	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB raws tu qauv	UVC 1.1
Yam tsawg kawg Illumination	0.1Lux
SNR	Ntau dua lossis sib npaug li 50dB
Video encoding hom ntawv	MJPEG, YUV
Kab rov tav tig	35 0 degree (± 175 degree) 0.1 degree /s -100 degree /s
Vertical rotation	9 0 degree (± 45 degree) 0.1 degree / s -80 degree s
Fais fab mov	DC 12V / 2A
Kev siv fais fab	12W
Ua haujlwm kub	0 degree ~ +50 degree
Ua haujlwm av noo	0 ~ 95% RH
Khoom loj	247 * 165 * 170 hli
Khoom hnyav	1.46kg / 2.85kg (net / tag nrho qhov hnyav)



Preset txoj hauj lwm

Cov neeg siv tuaj yeem teeb 10 los ntawm IR chaw taws teeb tswj; 64 los ntawm cov keyboard tswj;





Q: Thaum twg kuv tuaj yeem tau txais tus nqi?
A: Feem ntau peb hais hauv 8 teev tom qab peb tau txais koj qhov kev nug.



Q: Koj tus MOQ yog dab tsi?

A: Yog tias peb muaj cov khoom hauv Tshuag, nws yuav tsis muaj MOQ. Yog tias peb xav tau tsim, peb tuaj yeem tham txog MOQ raws li tus neeg siv khoom qhov xwm txheej.



Q: Koj lub sijhawm xa khoom ntev npaum li cas?

A: Kev xa khoom:
Rau cov qauv txiav txim, peb muaj cov khoom hauv Tshuag; tib hnub shipping thaum peb tau txais qhov kev txiav txim;
Kev txiav txim loj, cov khoom yuav raug xa tuaj hauv 3-7 hnub ua haujlwm;
Ntim:
Ua npuas ncauj ntim hauv; txheem thawv ntim sab nraum.



Q: Koj puas muab HD pc lub rooj sib tham system ptz koob yees duab qauv?

A: Yog, peb tuaj yeem muab cov qauv rau koj, tab sis nws raug nqi. Feem ntau, peb yuav xa koj tib hnub thaum peb tau txais koj cov xaj;



Q: Koj lub sijhawm them nyiaj yog dab tsi?

A: 30% tso nyiaj them ua ntej ua ntej thiab 70% tshuav nyiaj them ua ntej xa khoom.
